657-15ABPE - Wakefield Thermal

Description: Heat Sinks High Performance Heat Sink for Vertical Board Mounting for TO-220, TO-227, TO-218, 63.5mm Height

Download 657-15ABPE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
657-15ABPE - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

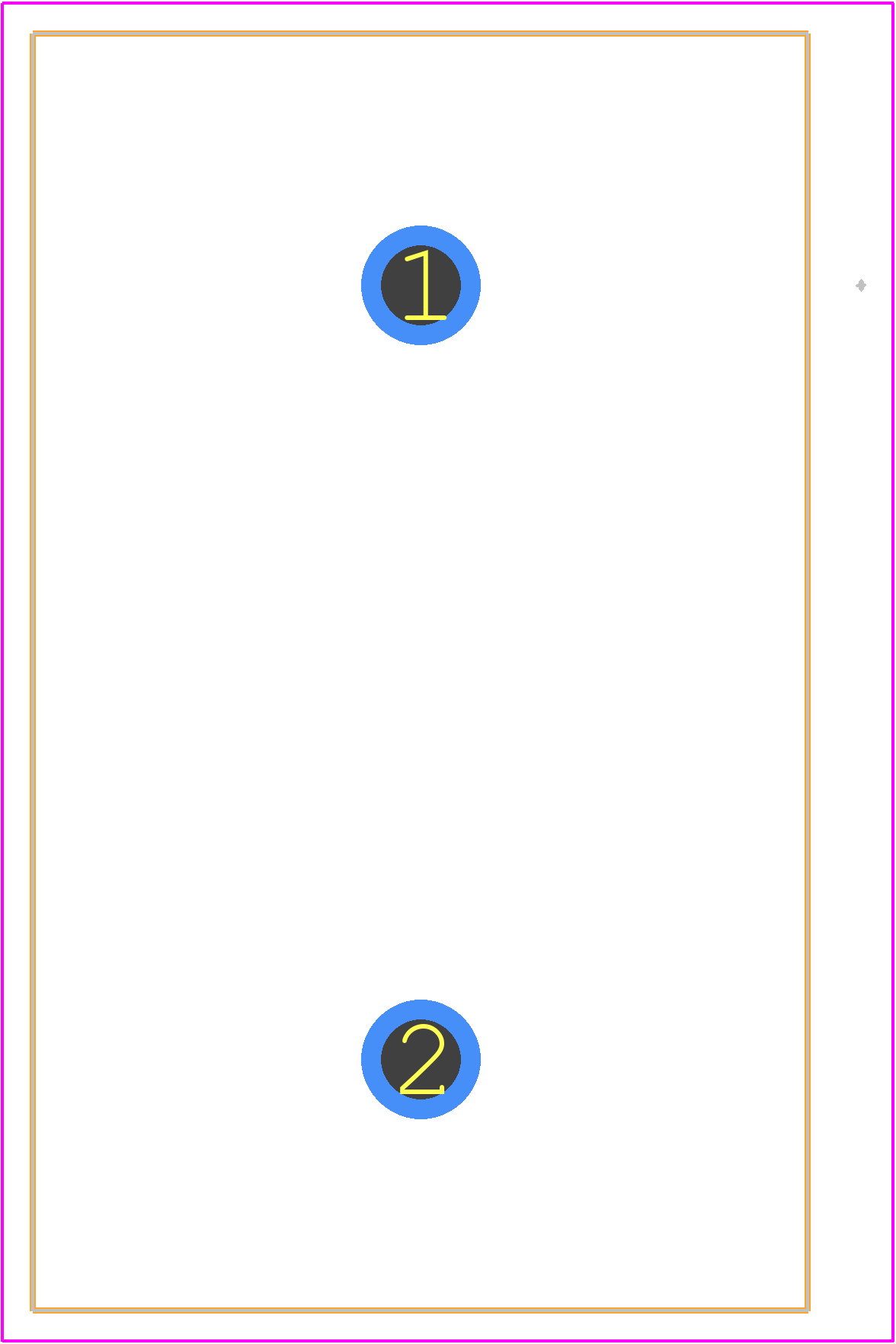

657-15ABPE - Wakefield Thermal PCB footprint - Other - Other - 657-15ABPE-1
click to zoom
3D Models
657-15ABPE - Wakefield Thermal - 3D model - Other - 657-15ABPE-1
click to zoom

657-15ABPE Details

  • Manufacturer Part Number:

    657-15ABPE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Thermal Support Device Type:

    HEAT SINK

657-15ABPE Frequently Asked Questions (FAQs)

  • The recommended mounting orientation is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
  • Yes, the 657-15ABPE is designed to withstand moderate vibration levels, but it's recommended to consult with Wakefield-Vette's application engineers to determine the suitability for specific vibration profiles.
  • The maximum allowable temperature for the 657-15ABPE is 85°C (185°F), but it's recommended to operate within the specified temperature range for optimal performance and reliability.
  • The 657-15ABPE is designed to operate in normal indoor environments, but it's not recommended for use in humid or high-moisture environments without proper protection or modifications. Consult with Wakefield-Vette's application engineers for custom solutions.
  • The typical lead time for the 657-15ABPE is 6-8 weeks, but it may vary depending on the quantity, customization, and production schedules. It's recommended to check with Wakefield-Vette's sales team for the most up-to-date lead times.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

657-15ABPE Overview

Use the download button to access the 657-15ABPE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 657-1, or try a keyword search, such as Heat Sinks
