657-25ABEP - Wakefield Thermal

Description: Heat Sinks High-Performance Heatsink for Vertical Board Mounting for TO-220, TO-247, TO-218, 63.5mm Height

Download 657-25ABEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
657-25ABEP - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

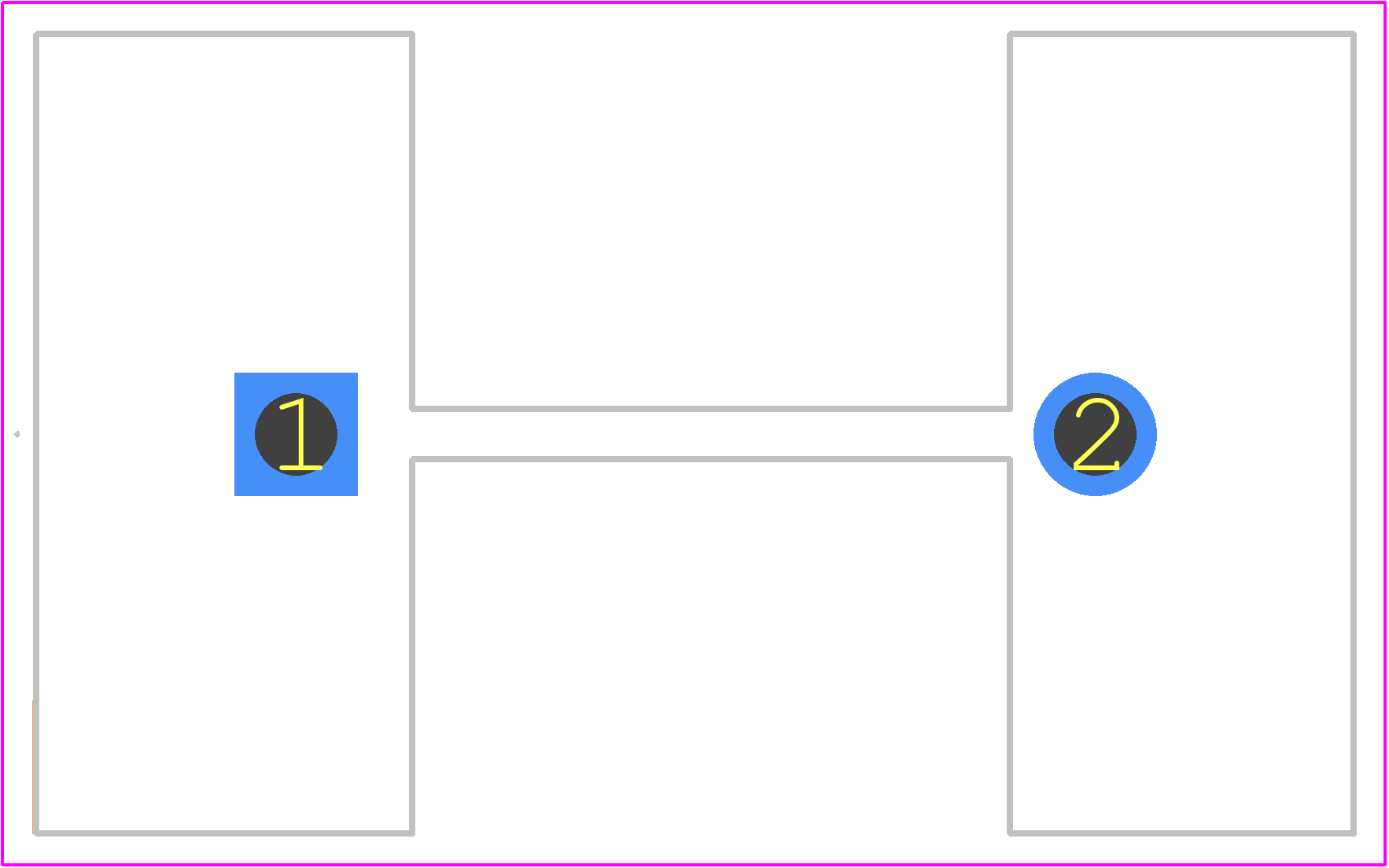

657-25ABEP - Wakefield Thermal PCB footprint - Other - Other - 657-25ABEP-2
click to zoom

657-25ABEP Details

  • Manufacturer Part Number:

    657-25ABEP

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Construction:

    EXTRUDED

  • Finish:

    ANODIZED

  • Height:

    63.5 mm

  • Length:

    41.9 mm

  • Thermal Support Device Type:

    HEAT SINK

  • Weight:

    57 g

  • Width:

    25.4 mm

657-25ABEP Frequently Asked Questions (FAQs)

  • The recommended mounting orientation is vertical, with the fins facing upwards to ensure optimal airflow and heat dissipation.
  • Yes, the 657-25ABEP is designed to withstand high-vibration environments, but it's recommended to secure the heat sink properly to prevent damage or detachment.
  • Wakefield-Vette recommends using a high-quality thermal interface material with a thermal conductivity of at least 5 W/m-K, such as thermal grease or thermal tape, to ensure optimal heat transfer.
  • Yes, Wakefield-Vette offers customization options for the 657-25ABEP, including modifications to the fin density, material, and size. Contact their sales team for more information.
  • The operating temperature range for the 657-25ABEP is -40°C to 150°C, but it's recommended to consult the datasheet and Wakefield-Vette's application notes for specific temperature ratings and derating guidelines.
