66.22.9.024.0600 footprint, schematic symbol and 3D model by FINDER

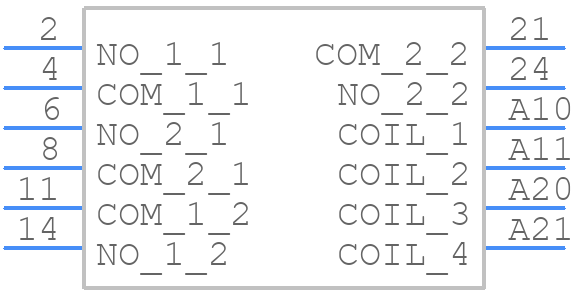

Symbol

click to zoom

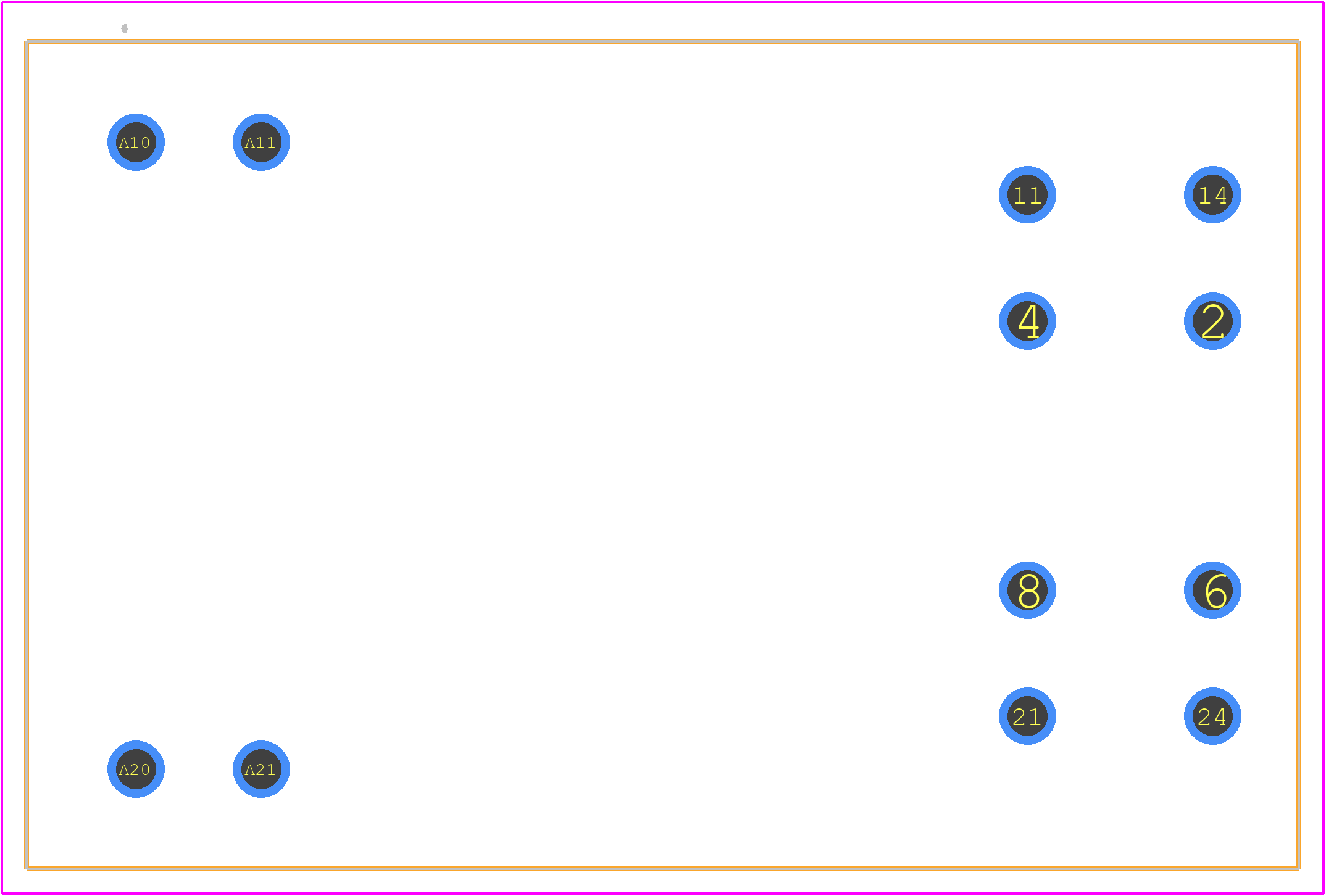

PCB Footprints

66.22.9.024.0600 - FINDER PCB footprint - Other - Other - 66.22.9.024.0600-4

click to zoom

3D Models

66.22.9.024.0600 - FINDER - 3D model - Other - 66.22.9.024.0600-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 66.22.9.024.0600
Part Number 66.22.9.024.0600
Manufacturer FINDER
Pin Count 12
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 66.22.9.024.0600-4
Released Date Mar 10, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

66.22.9.024.0600 Details

Manufacturer Part Number:
66.22.9.024.0600
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
FINDER SpA
YTEOL:
0
Body Breadth:
33.5 mm
Body Height:
31 mm
Body Length or Diameter:
51.5 mm
Coil Current(DC)-Max:
0.071 A
Coil Operate Voltage(DC):
19.2 V
Coil Power:
1700 mW
Coil Release Voltage(DC):
2.4 V
Coil Resistance:
340 Ω
Coil Voltage(DC)-Max:
26.4 V
Coil Voltage-Nom:
24 V
Coil/Input Supply Type:
DC
Contact (AC) Max Power Rating R Load:
7500VA@440VAC
Contact (AC) Max Rating R Load:
50A@440VAC
Contact Current(AC)-Max:
50 A
Contact Voltage(AC)-Max:
440 V
Contact/Output Supply Type:
AC
Electrical Life:
100000 Cycle(s)
End Contact Material:
Silver Cadmium Oxide
Input Switching Control Type:
Random
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
12
Operate Time:
15 ms
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
51.5mm x 33.5mm x 31mm
Reference Standard:
CUL; EAC; EX; IMQ; UL; VDE
Relay Action:
MOMENTARY
Relay Form:
2 FORM A
Relay Function:
DPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
4 ms
Sealing:
RT2
Surface Mount:
NO
Terminal Length:
0.004000508001016002 inch
Termination Type:
SOLDER

66.22.9.024.0600 Frequently Asked Questions (FAQs)

The maximum switching frequency of the 66.22.9.024.0600 relay module is 20 Hz, as specified by FINDER SpA. Exceeding this frequency may lead to reduced relay lifespan or malfunction.
The 66.22.9.024.0600 relay module is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, it's essential to ensure proper cooling and ventilation to prevent overheating, which can affect relay performance and lifespan.
FINDER SpA recommends using a wire gauge of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14) for connecting to the relay module. Using a wire gauge outside this range may lead to connection issues or overheating.
The 66.22.9.024.0600 relay module is not designed for use in hazardous locations, such as explosive atmospheres or areas with flammable gases. If you need a relay module for hazardous locations, consider FINDER SpA's ATEX-certified or IECEx-certified products.
The 66.22.9.024.0600 relay module is designed for use with an AC power supply. While it may be possible to use it with a DC power supply, it's not recommended, as the relay's internal circuitry is optimized for AC operation. Using a DC power supply may lead to reduced performance or malfunction.
