66.9040-22 - STAUBLI

Description: STAUBLI - 66.9040-22 - SOCKET, PCB, 4MM, R/A, RED

Download 66.9040-22 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
66.9040-22 - STAUBLI - PCB symbol
click to zoom
PCB Footprints

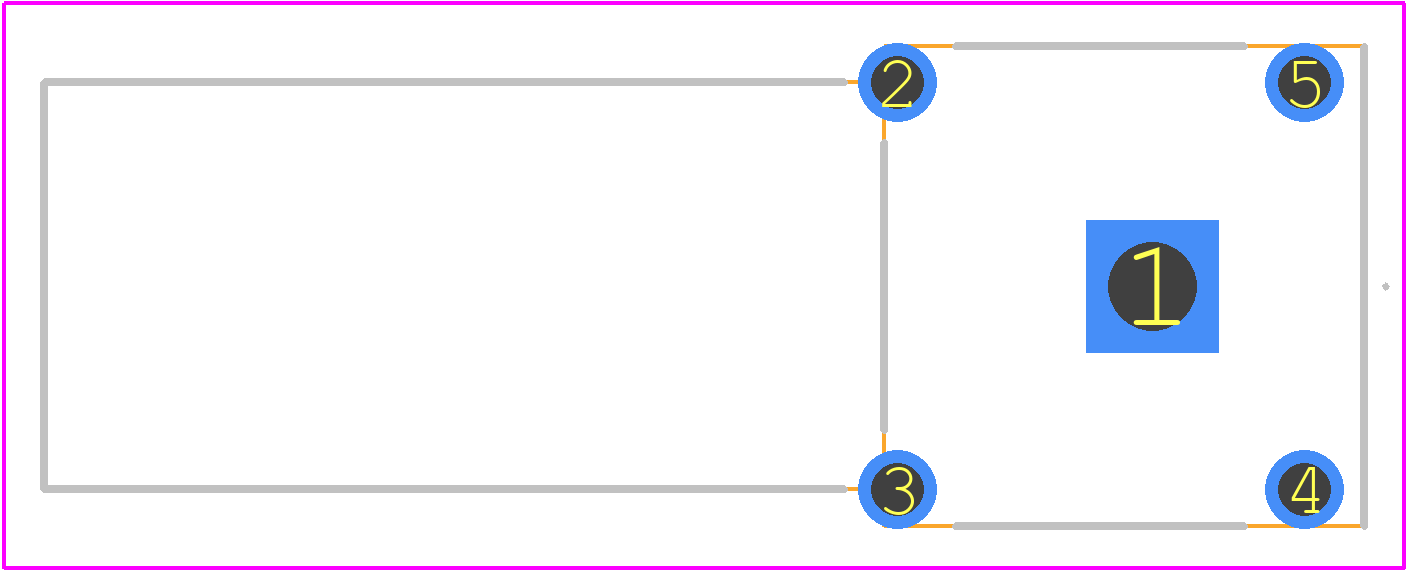

66.9040-22 - STAUBLI PCB footprint - Other - Other - 66.9040-22-4
click to zoom
3D Models
66.9040-22 - STAUBLI - 3D model - Other - 66.9040-22-4
click to zoom

66.9040-22 Details

  • Manufacturer Part Number:

    66.9040-22

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Stäubli Electrical Connectors

  • Connector Type:

    BANANA JACK

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

66.9040-22 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 66.9040-22 connector is 0.6 Nm (5.3 in-lbs) for the screw locking mechanism.
  • Yes, the 66.9040-22 connector is designed for outdoor use and can withstand harsh environmental conditions, including rain, snow, and extreme temperatures.
  • Yes, the 66.9040-22 connector is designed to withstand high-vibration environments and can be used in applications such as industrial machinery, transportation, and construction equipment.
  • Yes, the 66.9040-22 connector is compatible with other Stäubli connectors and can be used in conjunction with other Stäubli products.
  • The operating temperature range of the 66.9040-22 connector is -40°C to +125°C (-40°F to +257°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

66.9040-22 Overview

Use the download button to access the 66.9040-22 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66.90, or try a keyword search, such as Other Interconnects
