- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 6609006-7
- Part Number 6609006-7
- Manufacturer TE Connectivity
- Pin Count 3
- Part Category Connector
- Package Category Other

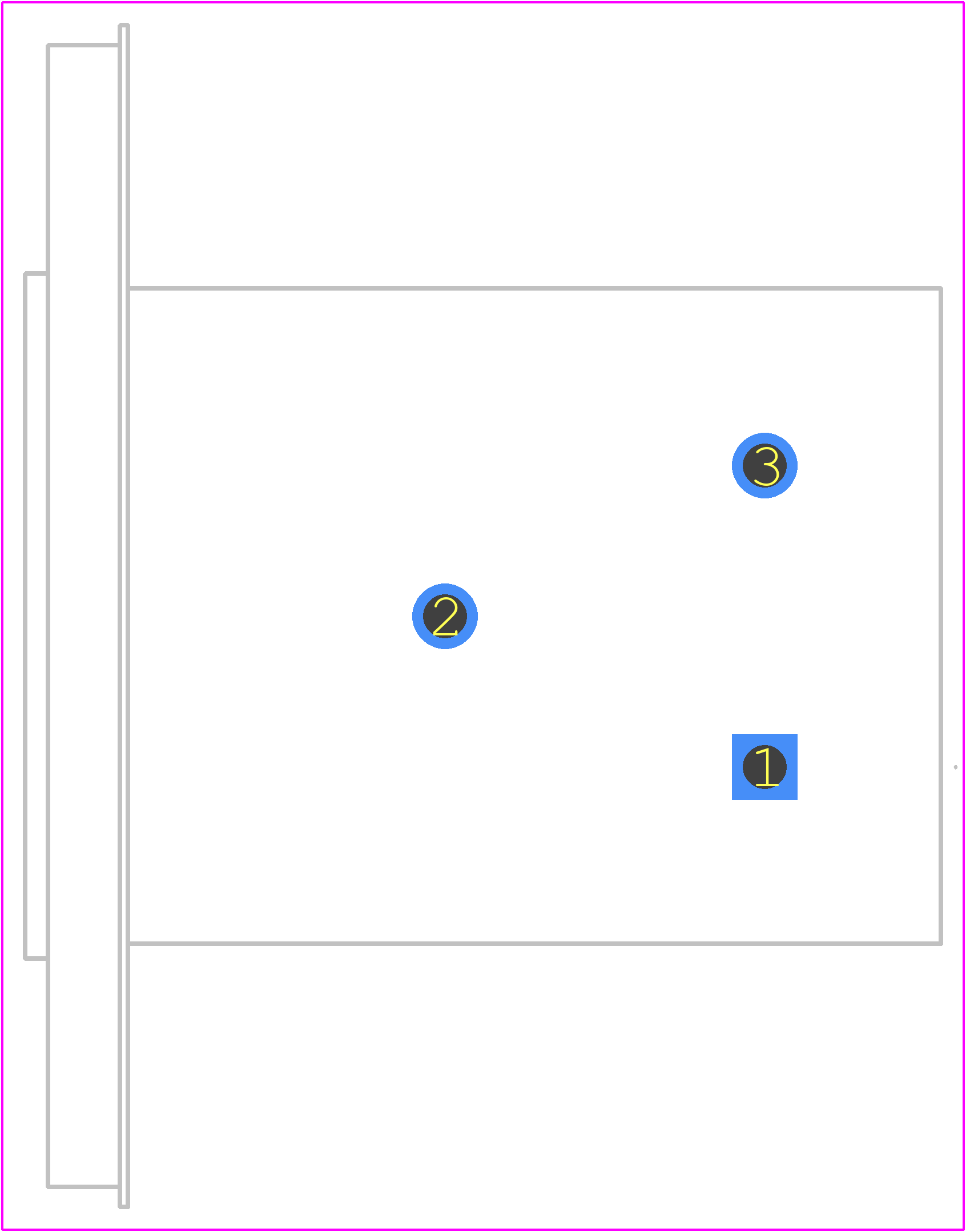

- Footprint Name Other - 6609006-7-2
- Released Date Jun 15, 2022
- Pinout / Pin List Click Here (Member Only)
6609006-7 Details
-
Manufacturer Part Number:
6609006-7
-
Brand Name:
Active
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
Connector Type:
MAINS POWER CONNECTOR
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Material:
NOT APPLICABLE
6609006-7 Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
-
Yes, the 6609006-7 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
-
The 6609006-7 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors.
-
The operating temperature range for the 6609006-7 connector is -40°C to 125°C (-40°F to 257°F).
-
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. It's best to follow the manufacturer's recommended wire gauge specifications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
6609006-7 Overview
Use the download button to access the 6609006-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66090,
or try a keyword search, such as Mains Power Connectors
