6650534-1 - TE Connectivity

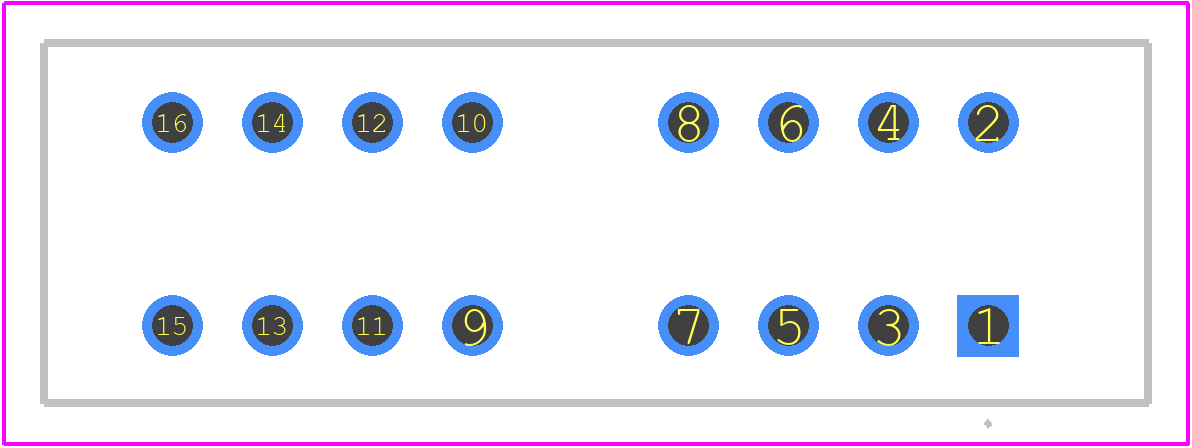

6650534-1 Details

• Manufacturer Part Number:

  6650534-1

• Brand Name:

  Elcon

• Part Life Cycle Code:

  Transferred

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks, 2 Days

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  TERMINAL PITCH FOR POWER CONTACTS IS 2.5 MM

• Board Mounting Option:

  COMPLIANT BOARDLOCK

• Body Breadth:

  0.356 inch

• Body Depth:

  0.591 inch

• Body Length:

  1.087 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  FEMALE

• Contact Material:

  NOT APPLICABLE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYETHYLENE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mains Connector Rating:

  115/230VAC

• Mating Contact Pitch:

  0.098 inch

• Mating Contact Row Spacing:

  0.129 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  MIXED

• Packing Method:

  BOX

• Panel Mount:

  NO

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  35 A

• Rated Voltage:

  250 V

• Reference Standard:

  UL

• Terminal Length:

  0.159 inch

• Terminal Pitch:

  2.5 mm

• Termination Type:

  PRESS FIT/SOLDER

• Total Number of Contacts:

  16

• UL Flammability Code:

  94V-0
