67-23/R6GHBHC-B05/2T footprint, schematic symbol and 3D model by Everlight

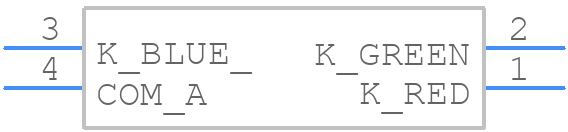

Symbol

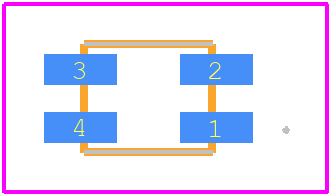

PCB Footprints

3D Models

67-23/R6GHBHC-B05/2T Details

The recommended storage temperature for the 67-23/R6GHBHC-B05/2T is -20°C to 30°C, with a relative humidity of 60% or less.
Yes, the 67-23/R6GHBHC-B05/2T is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture ingress.
The maximum soldering temperature for the 67-23/R6GHBHC-B05/2T is 260°C for 3 seconds, with a peak temperature of 240°C.
Yes, the 67-23/R6GHBHC-B05/2T is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for lead-free soldering.
The typical luminous intensity of the 67-23/R6GHBHC-B05/2T is 12,000 mcd, with a viewing angle of 120°.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 67-23/R6GHBHC-B05/2T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 67-23, or try a keyword search, such as Visible LEDs
