Part Image

6711-RC - Bourns

Description: FIXED IND 50UH 9.5A 12 MOHM TH

Download 6711-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

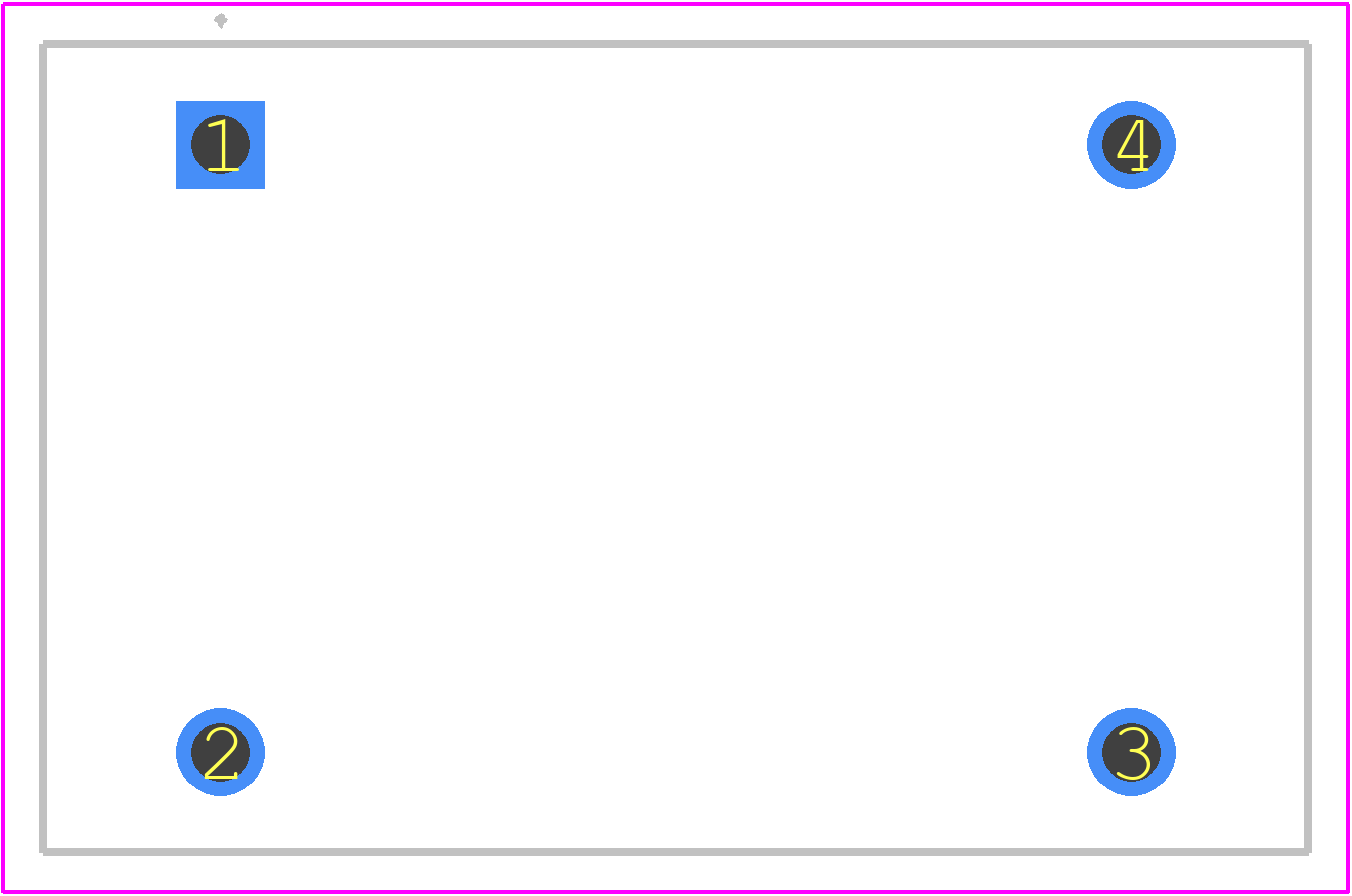

6711-RC - Bourns PCB footprint - Other - Other - 6711-RC-2
click to zoom
3D Models
6711-RC - Bourns  - 3D model - Other - 6711-RC-2
click to zoom

6711-RC Details

  • Manufacturer Part Number:

    6711-RC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    0

  • Construction:

    Toroidal Core

  • DC Resistance:

    0.012 Ω

  • Inductance-Nom (L):

    50 µH

  • Inductor Application:

    HIGH CURRENT INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Lead Diameter:

    1.27 mm

  • Lead Length:

    0.508 mm

  • Number of Functions:

    2

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    34.925 mm

  • Package Length:

    31.75 mm

  • Package Style:

    PCB Mount

  • Package Width:

    20.32 mm

  • Rated Current-Max:

    9.5 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    NO

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    WIRE

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    15%

6711-RC Frequently Asked Questions (FAQs)

  • A good PCB layout for the 6711-RC should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place the device close to the power source. Additionally, ensure that the PCB material has a high thermal conductivity to dissipate heat efficiently.
  • The feedback resistor value depends on the desired output voltage and the input voltage range. A general rule of thumb is to choose a resistor value that sets the output voltage to the desired level while ensuring the feedback voltage is within the recommended range (typically 1.2V to 2.5V). Consult the datasheet and application notes for specific guidance.
  • The 6711-RC has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 7V to 15V. Exceeding the maximum input voltage can damage the device or affect its performance.
  • The 6711-RC has an operating temperature range of -40°C to +125°C. While it can operate in high-temperature environments, the device's performance and reliability may degrade above 85°C. Ensure proper thermal management and consider derating the device's performance at high temperatures.
  • To ensure stability, follow these guidelines: use a minimum output capacitance of 10uF, keep the output voltage within the recommended range, and avoid using long output cables or traces. Additionally, ensure the input voltage is well-regulated and the device is properly decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6711-RC Overview

Use the download button to access the 6711-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6711-, or try a keyword search, such as Fixed Inductors
