680-10A - Wakefield Thermal

Description: Heat Sinks Maximum Efficiency Omnidirectional Heatsink for TO-3, 25.4mm Height

Download 680-10A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
680-10A - Wakefield Thermal - PCB symbol
click to zoom
PCB Footprints

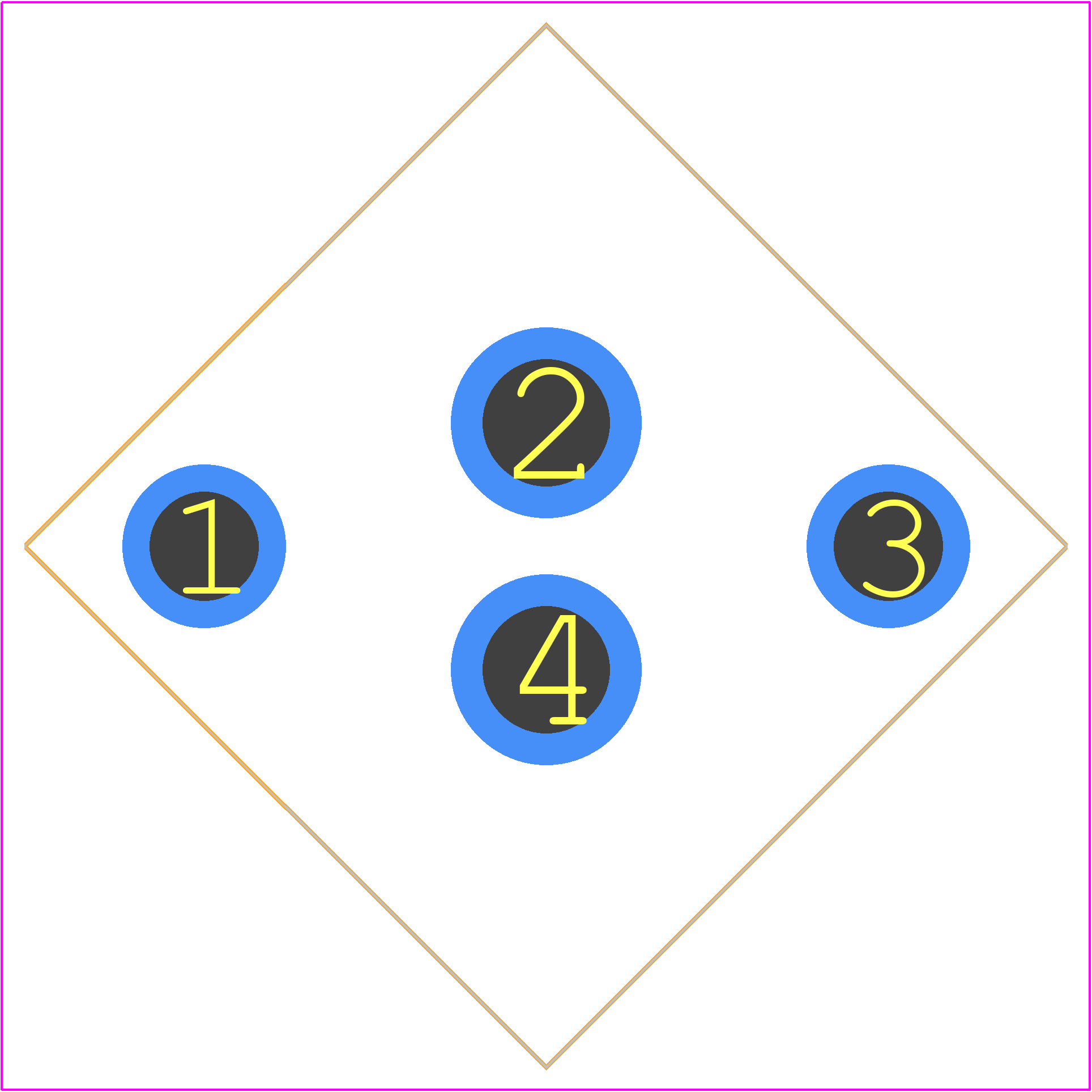

680-10A - Wakefield Thermal PCB footprint - Other - Other - 680-10A-5
click to zoom
3D Models
680-10A - Wakefield Thermal - 3D model - Other - 680-10A-5
click to zoom

680-10A Details

  • Manufacturer Part Number:

    680-10A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.90.00.00

  • Manufacturer:

    Wakefield-Vette

  • Body Material:

    ALUMINUM

  • Color:

    BLACK

  • Fin Orientation:

    OMNIDIRECT

  • Finish:

    ANODIZED

  • Height:

    25.4 mm

  • Length:

    46 mm

  • Thermal Support Device Type:

    HEAT SINK

  • Weight:

    44.45 g

  • Width:

    46 mm

680-10A Frequently Asked Questions (FAQs)

  • Wakefield-Vette recommends using a high-quality thermal interface material such as Wakefield-Vette's own THERMAL-GREASE 301 or equivalent to ensure optimal thermal performance.
  • Yes, the 680-10A is designed to withstand moderate vibration levels. However, it's recommended to consult with Wakefield-Vette's application engineers to determine the suitability of the heat sink for specific vibration profiles.
  • The maximum allowable pressure for the 680-10A's mounting clips is 10-15 in-lbs (1.1-1.7 Nm) to ensure secure fastening without damaging the heat sink or the component being cooled.
  • Yes, Wakefield-Vette offers customization options for the 680-10A, including modifications to the fin geometry, base plate thickness, and mounting hole patterns. Contact Wakefield-Vette's application engineers to discuss specific requirements.
  • The 680-10A is RoHS and REACH compliant, meeting the European Union's directives for restriction of hazardous substances and registration, evaluation, authorization, and restriction of chemicals.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

680-10A Overview

Use the download button to access the 680-10A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 680-1, or try a keyword search

About Wakefield Thermal

Wakefield Thermal provides thermal solutions for customers in aerospace, LED lighting, automation, consumer electronics, medical devices, renewable energy, telecommunications, and transportation. They manufacture thermal extrusions, LED head sinks, heat frames, and pipes, fans, heat exchangers, and coolant distribution units. Headquartered in Nashua, New Hampshire, Wakefield Thermal has manufacturing facilities in North America and Dongguan, China.
