The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs) to ensure secure connections.
Yes, the 690-009-521-900 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and aerospace applications.
Yes, the connector is designed to operate in temperatures ranging from -40°C to 125°C (-40°F to 257°F) and is suitable for use in harsh environments, including outdoor and high-temperature areas.
The 690-009-521-900 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
While the connector is designed for use with AWG 20-24 wires, it can accommodate smaller wire sizes with the use of wire adapters or terminals. However, it's essential to ensure the wire size and type meet the connector's specifications to maintain reliability and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
690-009-521-900 Overview

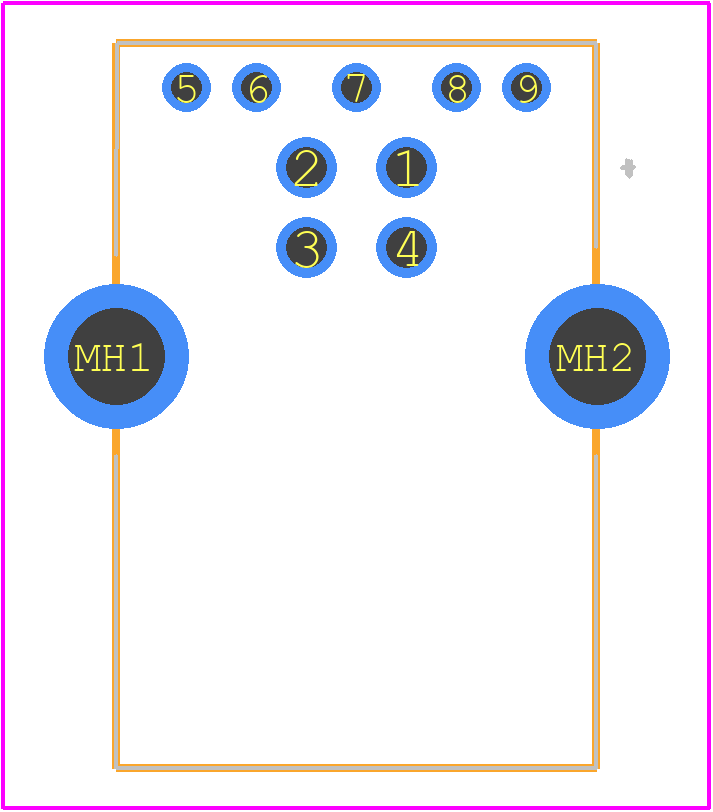

Use the download button to access the 690-009-521-900 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 690-0,
or try a keyword search, such as Telecom and Datacom Connectors
