The recommended torque for the screw terminals of the 690B109-523-022 connector is typically between 0.5-1.5 Nm (7-21 in-lbs). However, it's best to consult the EDAC Inc application notes or contact their technical support for specific guidance.
The 690B109-523-022 connector is designed to meet the requirements of IEC 61984, which includes vibration testing. However, it's essential to evaluate the connector's performance in your specific application and consider additional fixation or mounting methods to ensure reliable operation in high-vibration environments.
The 690B109-523-022 connector is designed to accommodate wire sizes between 24 AWG and 16 AWG. However, it's recommended to consult the EDAC Inc datasheet or application notes for specific wire size recommendations and any potential derating factors.
The 690B109-523-022 connector is designed to operate in a temperature range of -40°C to 125°C and meets the requirements of IEC 61984 for humidity and temperature testing. However, it's essential to evaluate the connector's performance in your specific application and consider additional environmental factors, such as chemical exposure or UV radiation.
The 690B109-523-022 connector is rated for a maximum current of 9.5 A per contact. However, it's essential to evaluate the connector's performance in your specific application, considering factors such as wire size, temperature, and voltage drop, to ensure reliable operation in high-current environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
690B109-523-022 Overview

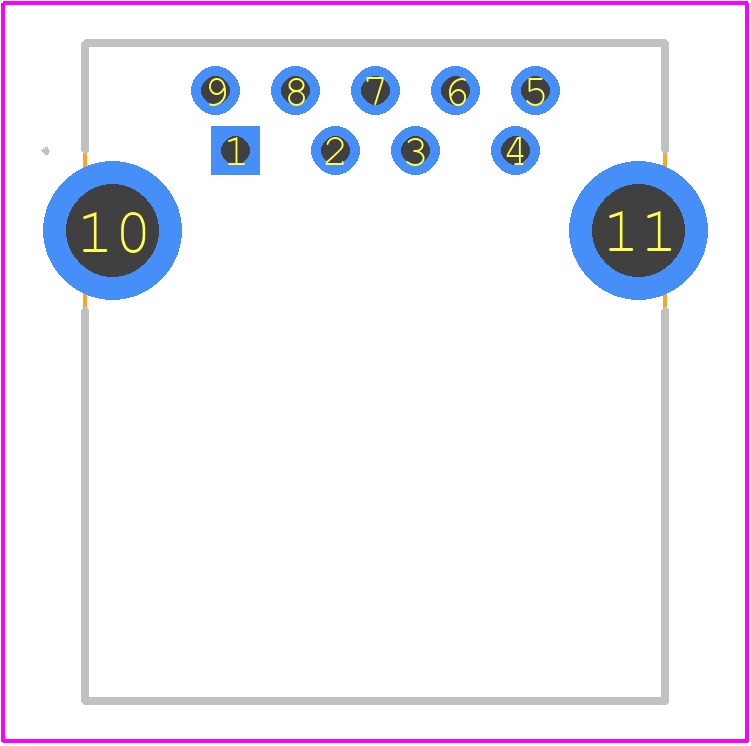

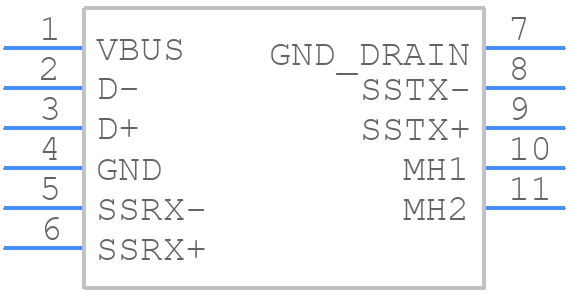

Use the download button to access the 690B109-523-022 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 690B1,
or try a keyword search, such as Telecom and Datacom Connectors
