694D119-664-011 - EDAC

Description: HDMI Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole CURRENT RATING: 0.5A VOLTAGE RATING: 40V CONTACT RESISTANCE: 10mΩ MAX.-20°C ~ 85°C

Download 694D119-664-011 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

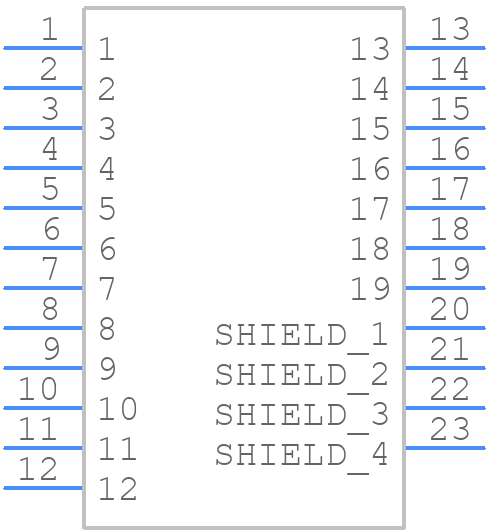

694D119-664-011 - EDAC - PCB symbol
click to zoom
PCB Footprints

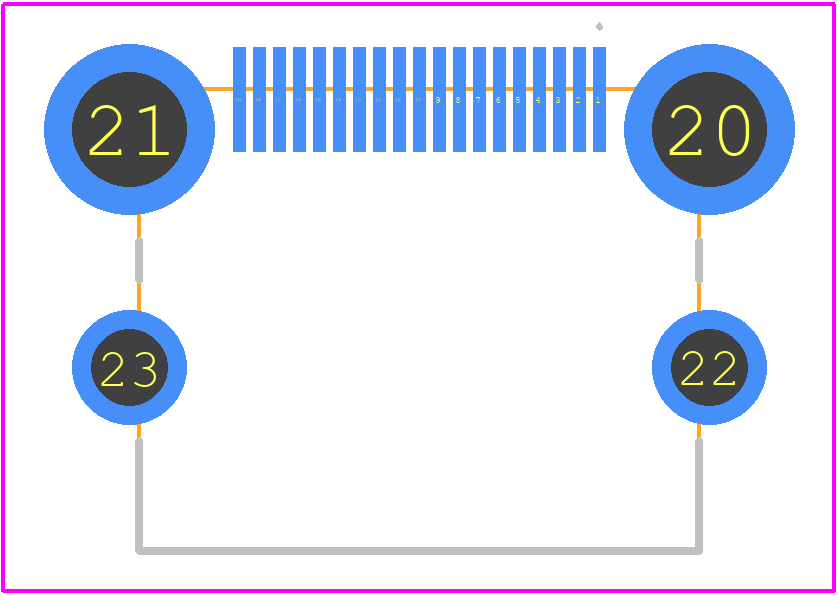

694D119-664-011 - EDAC PCB footprint - Other - Other - 694D119-664-011-1
click to zoom
3D Models
694D119-664-011 - EDAC - 3D model - Other - 694D119-664-011-1
click to zoom

694D119-664-011 Details

  • Manufacturer Part Number:

    694D119-664-011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    EDAC Inc

  • Connector Type:

    USB CONNECTOR

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

694D119-664-011 Overview

Use the download button to access the 694D119-664-011 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 694D1, or try a keyword search, such as Telecom and Datacom Connectors
