6DBL-02-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Rows 1 | Number of Levels 1 | Number of Positions 2 | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating (Max) 5 AMP | Contact Current Rating (Max) 25 AMP | PCB Contact Termination Area Plating Material Tin | Dimensions: Product Length .811 INCH | Wire Size 22 – 12 AWG | Product Length 20.6 MM | Wire Size .3 – 3 MMSQ | Electrical Chara

Download 6DBL-02-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6DBL-02-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

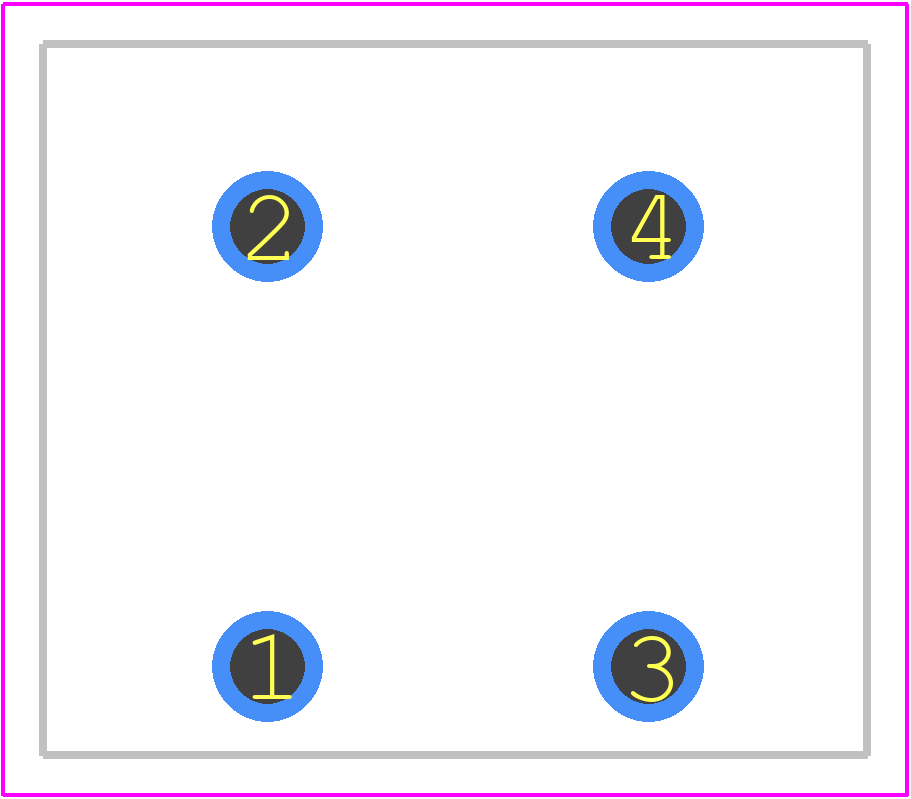

6DBL-02-006 - TE Connectivity PCB footprint - Other - Other - 6DBL-02-006-3
click to zoom
3D Models
6DBL-02-006 - TE Connectivity - 3D model - Other - 6DBL-02-006-3
click to zoom

6DBL-02-006 Details

  • Manufacturer Part Number:

    6DBL-02-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.3

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

6DBL-02-006 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 6DBL-02-006 is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and mounting.
  • The operating temperature range for the 6DBL-02-006 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 6DBL-02-006 is designed for outdoor use and can withstand environmental factors like moisture, dust, and UV exposure.
  • Yes, but it's recommended to consult TE Connectivity's wire size compatibility chart to ensure proper connection and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6DBL-02-006 Overview

Use the download button to access the 6DBL-02-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6DBL-, or try a keyword search, such as Terminals and Terminal Blocks
