6DBL-04-006 - TE Connectivity

Description: Body Features: Primary Product Color Black | Product Orientation Vertical | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Levels 1 | Number of Positions 4 | Number of Rows 1 | Contact Features: Contact Current Rating (Max) 25 AMP | Contact Base Material Copper Alloy | PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 5 AMP | Dimensions: Product Length 39.65 MM | Wire Size 22 – 12 AWG | Product Length 1.561 INCH | Wire Size .3 – 3 MMSQ | Electrical Cha

Download 6DBL-04-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6DBL-04-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

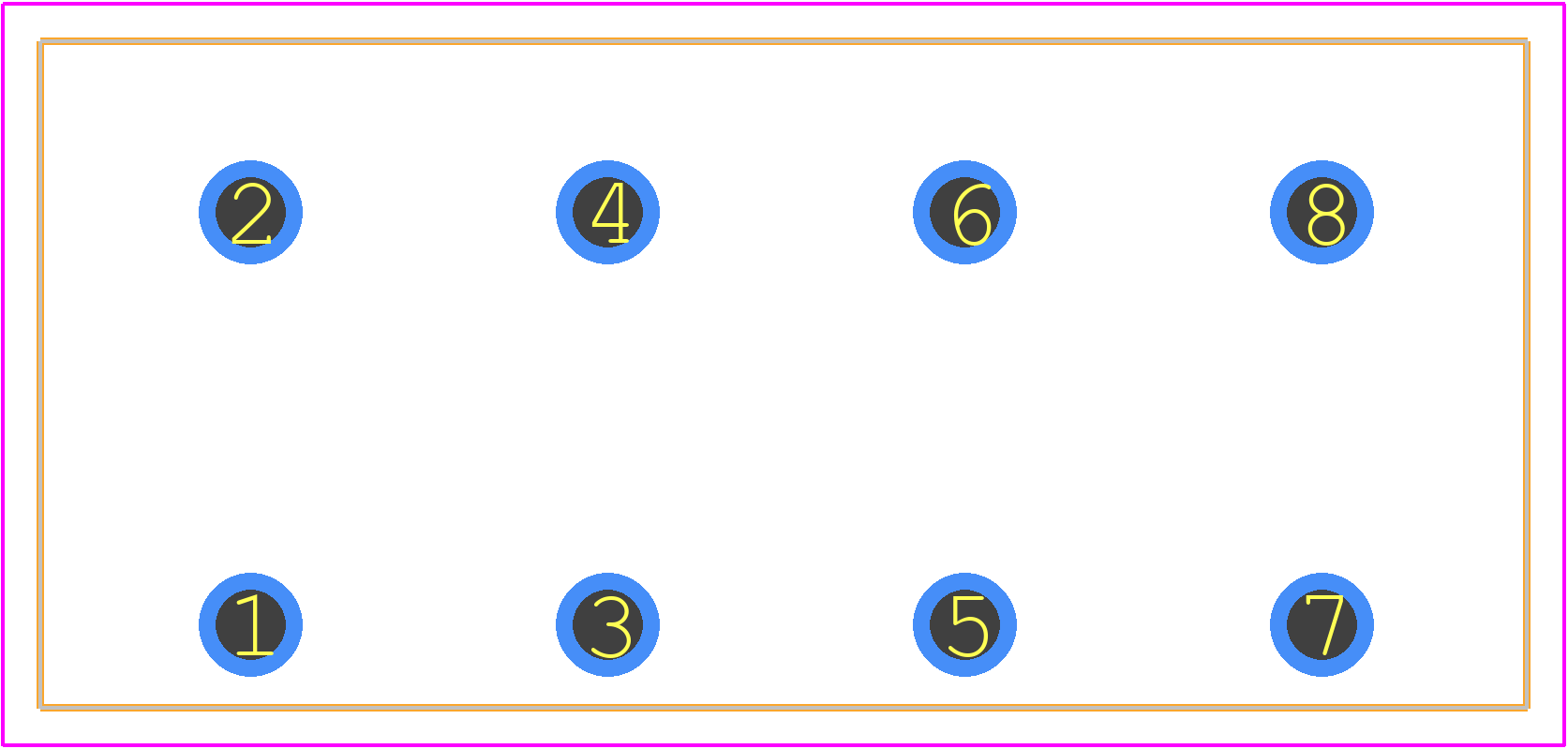

6DBL-04-006 - TE Connectivity PCB footprint - Other - Other - 6DBL-04-006-2
click to zoom
3D Models
6DBL-04-006 - TE Connectivity - 3D model - Other - 6DBL-04-006-2
click to zoom

6DBL-04-006 Details

  • Manufacturer Part Number:

    6DBL-04-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.53

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

6DBL-04-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, the 6DBL-04-006 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • The 6DBL-04-006 has a rating of IP67 (IEC 60529), which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The operating temperature range of the 6DBL-04-006 is -40°C to 125°C (-40°F to 257°F).
