A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a heat sink or a thermal pad to dissipate heat efficiently.
Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's current and voltage ratings at high temperatures.
The 6EDL04I06NT has built-in ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or container.
Yes, the 6EDL04I06NT is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and derating guidelines.
Use a thermal imaging camera to identify hotspots, and check for proper PCB layout, thermal management, and cooling. Verify the device is operated within the recommended specifications, and check for any signs of physical damage or contamination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6EDL04I06NT Overview

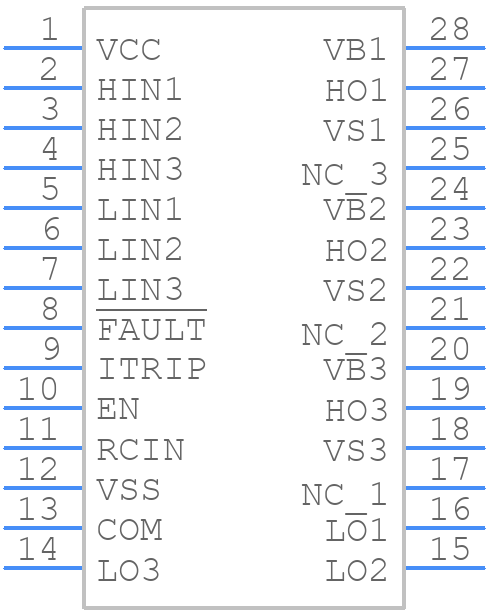

Use the download button to access the 6EDL04I06NT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6EDL0,
or try a keyword search, such as MOSFET Drivers
