Infineon provides a recommended PCB layout in their application note AN2013-01, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
Infineon recommends following the soldering conditions outlined in their application note AN2013-02, which includes guidelines for reflow soldering, wave soldering, and hand soldering to ensure reliable assembly and minimize the risk of damage.
To troubleshoot issues with the internal voltage regulator, check the input voltage, output voltage, and current consumption. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Also, ensure that the device is not overheating, and the current consumption is within the specified limits.
To prevent electrostatic discharge (ESD) damage, handle the device in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures. Ground yourself by wearing an ESD strap or touching a grounded object before handling the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6EDL04N02PRXUMA1 Overview

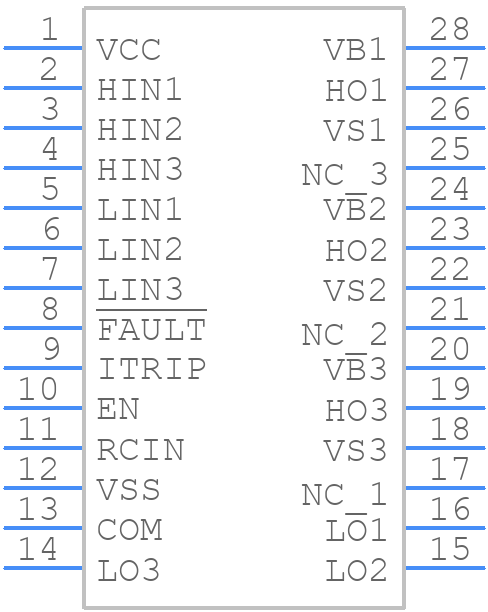

Use the download button to access the 6EDL04N02PRXUMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6EDL0,
or try a keyword search, such as MOSFET Drivers
