6EDL7141XUMA1 - Infineon

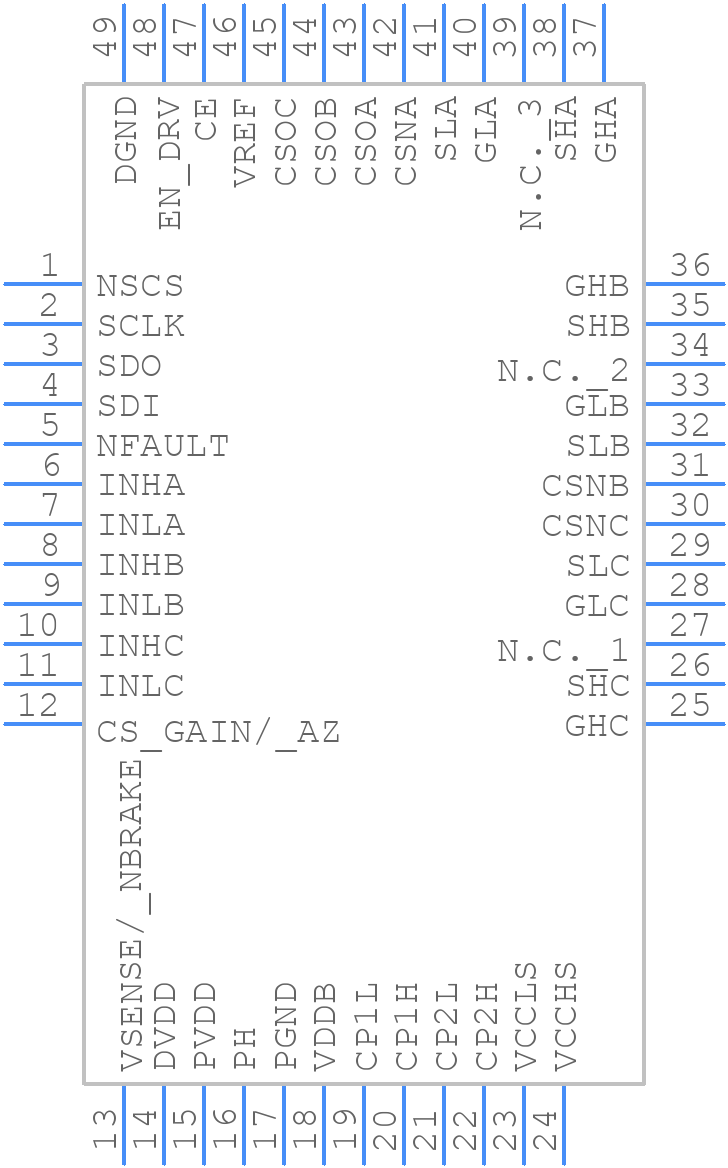

6EDL7141XUMA1 Details

• Manufacturer Part Number:

  6EDL7141XUMA1

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VQFN-48

• Country Of Origin:

  Germany, Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  7

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  S-PQCC-N48

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  48

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  PUSH-PULL

• Output Peak Current Limit-Nom:

  1.5 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.3SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Seated Height-Max:

  0.9 mm

• Supply Current-Max:

  50 mA

• Supply Voltage-Max:

  60 V

• Supply Voltage-Min:

  5.5 V

• Supply Voltage-Nom:

  40 V

• Supply Voltage1-Max:

  75 V

• Supply Voltage1-Min:

  -0.3 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  0.25 µs

• Turn-on Time:

  0.25 µs

• Width:

  7 mm
