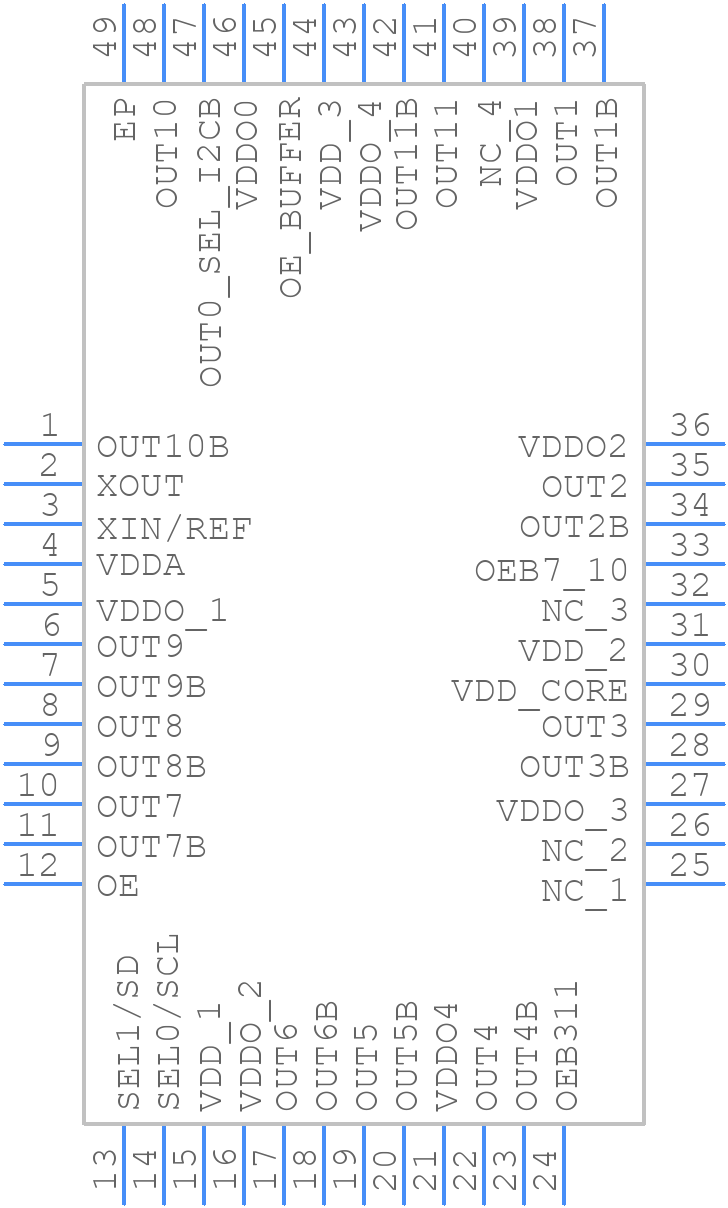

6P41505NDGI8 - Renesas Electronics

6P41505NDGI8 Details

• Manufacturer Part Number:

  6P41505NDGI8

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VFQFPN-48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Additional Feature:

  44MILLIAMP NOM SUPPLY CURRENT IS AVAILABLE

• JESD-30 Code:

  S-XQCC-N48

• Length:

  6 mm

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Clock Frequency-Max:

  350 MHz

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC48,.24SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Primary Clock/Crystal Frequency-Nom:

  200 MHz

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.89 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  6 mm

• uPs/uCs/Peripheral ICs Type:

  CLOCK GENERATOR, OTHER
