6PCV-05-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Levels 1 | Number of Positions 5 | Number of Rows 1 | Contact Features: PCB Contact Termination Area Plating Material Tin | Contact Current Rating (Max) 5 AMP | Contact Base Material Copper Alloy | Contact Current Rating (Max) 25 AMP | Dimensions: Product Length 49.17 MM | Wire Size 22 – 12 AWG | Wire Size .3 – 3 MMSQ | Product Length 1.936 INCH | Electrical Cha

Download 6PCV-05-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-05-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

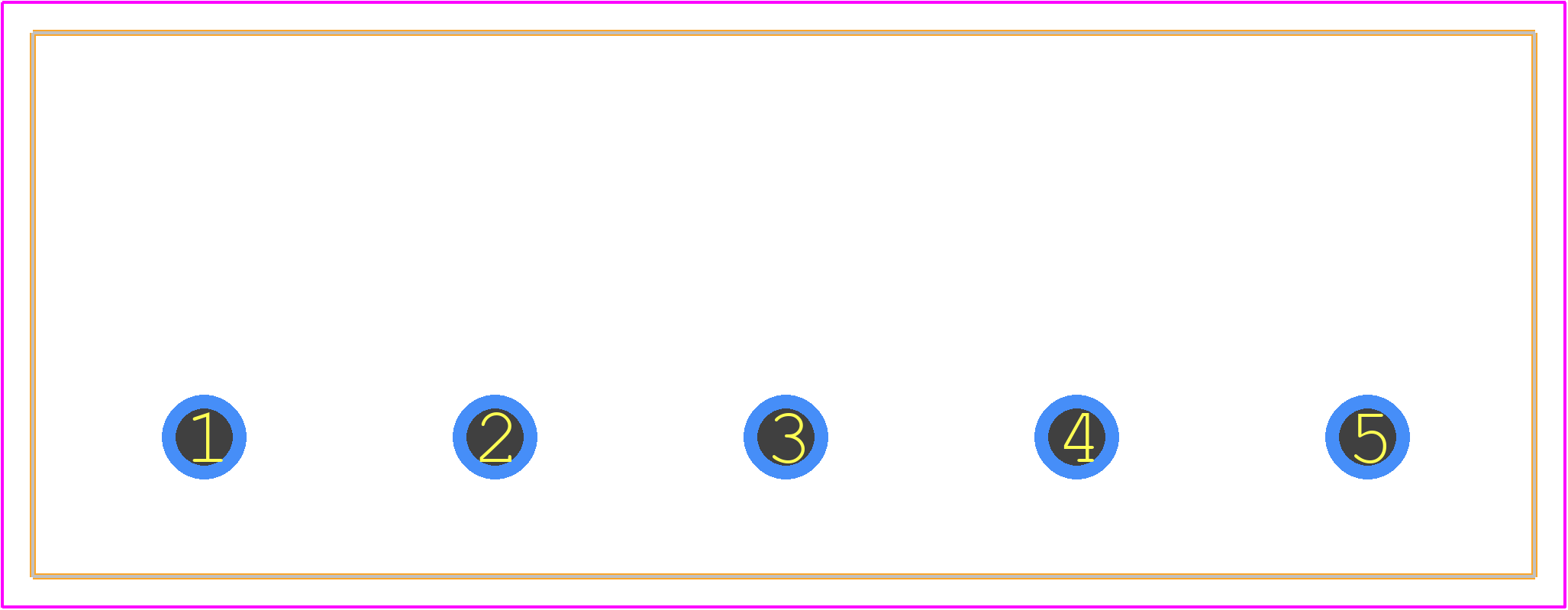

6PCV-05-006 - TE Connectivity PCB footprint - Other - Other - 6PCV-05-006-1
click to zoom
3D Models
6PCV-05-006 - TE Connectivity - 3D model - Other - 6PCV-05-006-1
click to zoom

6PCV-05-006 Details

  • Manufacturer Part Number:

    6PCV-05-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    23 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.56

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

6PCV-05-006 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.6 Nm (5.3 in-lbs) for the screw terminals.
  • Yes, the 6PCV-05-006 is designed to withstand vibrations and can be used in high-vibration environments, but it's recommended to follow proper mounting and installation procedures to ensure reliability.
  • The 6PCV-05-006 is rated IP67, which means it provides protection against dust and water immersion up to 1 meter for 30 minutes. However, it's recommended to use additional protection measures, such as conformal coating or potting, for extended outdoor use.
  • The 6PCV-05-006 is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 24-20 AWG.
