6PCV-10-006 - TE Connectivity

Description: Body Features: Product Orientation Vertical | Primary Product Color Black | Barrier Strip Style Tri-Barrier | Configuration Features: Number of Levels 1 | Number of Positions 10 | Number of Rows 1 | Contact Features: Contact Base Material Copper Alloy | Contact Current Rating (Max) 5 AMP | Contact Current Rating (Max) 25 AMP | PCB Contact Termination Area Plating Material Tin | Dimensions: Product Length 3.811 INCH | Product Length 96.8 MM | Wire Size .326 – 3.31 MMSQ | Wire Size 22 – 12 AWG | Electrica

Download 6PCV-10-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-10-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

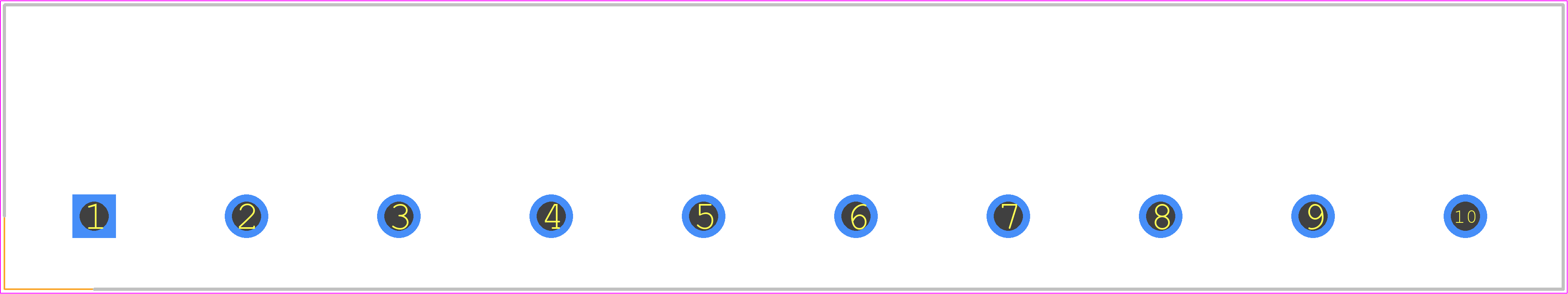

6PCV-10-006 - TE Connectivity PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - 6PCV-10-006
click to zoom
3D Models
6PCV-10-006 - TE Connectivity - 3D model - Header, Receptacle - Straight PTH Box - 6PCV-10-006
click to zoom

6PCV-10-006 Details

  • Manufacturer Part Number:

    6PCV-10-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.78

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3.31 mm2

  • Wire Gauge:

    12 AWG

6PCV-10-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 6PCV-10-006 is designed to withstand high-vibration environments, making it suitable for applications such as industrial control systems, transportation, and aerospace.
  • Yes, the 6PCV-10-006 is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance up to 95% RH.
  • The 6PCV-10-006 can accommodate wire sizes up to 14 AWG (2.08 mm²).
  • Yes, the 6PCV-10-006 is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
