6PCV-20-006 - TE Connectivity

Description: Conn Barrier Strip 20 POS 9.53mm Solder ST Thru-Hole 25A/Contact Package

Download 6PCV-20-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6PCV-20-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

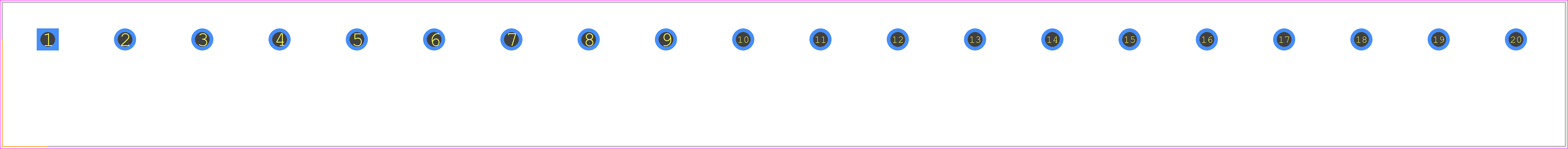

6PCV-20-006 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 6PCV-20-006
click to zoom
3D Models
6PCV-20-006 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 6PCV-20-006
click to zoom

6PCV-20-006 Details

  • Manufacturer Part Number:

    6PCV-20-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    25 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

6PCV-20-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 6PCV-20-006 is 0.5-0.8 Nm (0.37-0.59 lbf-in).
  • Yes, the 6PCV-20-006 is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
  • The 6PCV-20-006 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3ft) for 30 minutes. However, it's recommended to use additional protection or sealing for extended outdoor use.
  • The 6PCV-20-006 has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • No, the 6PCV-20-006 is designed for use with wire sizes 20-24 AWG. Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

6PCV-20-006 Overview

Use the download button to access the 6PCV-20-006 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PCV-, or try a keyword search, such as Terminals and Terminal Blocks

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
