6PCV-28-006 - TE Connectivity

Description: Tri-Barrier, Printed Circuit Pin, Wire-to-Board, 28 Position, 9.53 mm [.375 in] Centerline, 1 Row, Buchanan 6 Series, Barrier Strips

Download 6PCV-28-006 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

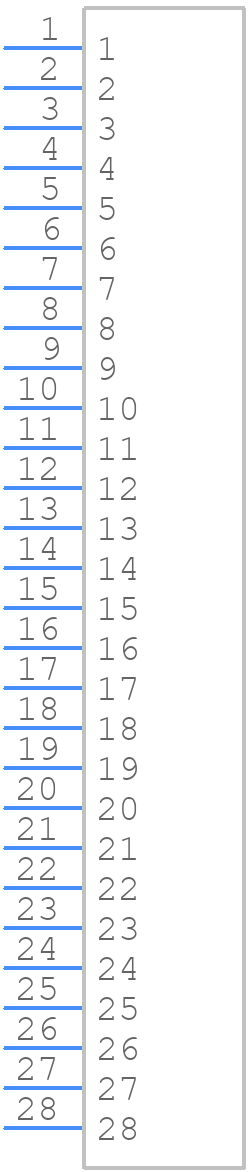

6PCV-28-006 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
6PCV-28-006 - TE Connectivity PCB footprint - Other - Other - 6PCV-28-006-1
click to zoom
3D Models
6PCV-28-006 - TE Connectivity - 3D model - Other - 6PCV-28-006-1
click to zoom

6PCV-28-006 Details

  • Manufacturer Part Number:

    6PCV-28-006

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5.52

  • Additional Feature:

    STANDARD: UL94V-0, POLYAMIDE

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    28

  • Rated Current:

    20 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    3 mm2

  • Wire Gauge:

    12 AWG

6PCV-28-006 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of 6PCV-28-006 is 0.5-0.8 Nm (0.37-0.59 lbf-in) according to TE Connectivity's application notes.
  • Yes, the 6PCV-28-006 is designed to withstand vibrations up to 10g (according to IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
  • The 6PCV-28-006 has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m for 30 minutes. However, it is recommended to use additional protection, such as a sealant or conformal coating, for extended outdoor use.
  • The 6PCV-28-006 has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including automotive, industrial, and consumer electronics.
