Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the pins, and the PCB should be designed to minimize parasitic inductance and capacitance.
To ensure reliable operation over the full temperature range, it is recommended to follow proper thermal design and management practices, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots. Additionally, the device should be operated within the specified voltage and current ratings.
Panasonic recommends using low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The capacitor should be rated for the maximum operating voltage and should be placed as close as possible to the pins.
Common issues with the 6TCE330MFL include overheating, output voltage instability, and input voltage undershoot. To troubleshoot these issues, check the PCB layout, thermal design, and component selection. Verify that the input and output capacitors are properly selected and placed, and that the device is operated within the specified voltage and current ratings.
The 6TCE330MFL is a sensitive electronic component and should be handled and stored with care. It is recommended to handle the device by the body, avoiding touching the pins or leads. The device should be stored in a dry, cool place, away from direct sunlight and moisture. Electrostatic discharge (ESD) precautions should be taken when handling the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6TCE330MFL Overview

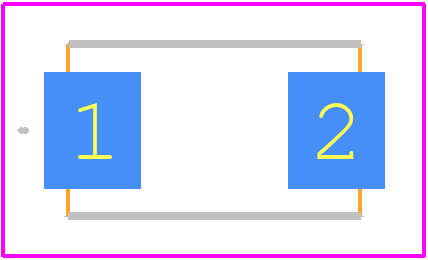

Use the download button to access the 6TCE330MFL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6TCE3,
or try a keyword search, such as Ceramic Capacitors
