6TPE100M - Panasonic

Description: Panasonic 100μF SMD Solid Polymer Tantalum Capacitor, 6.3 V dc ±20%, POSCAP Series

Download 6TPE100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6TPE100M - Panasonic - PCB symbol
click to zoom
PCB Footprints

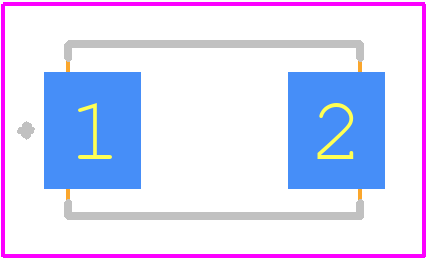

6TPE100M - Panasonic PCB footprint - Other - Other - d2e
click to zoom
3D Models
6TPE100M - Panasonic - 3D model - Other - d2e
click to zoom

6TPE100M Details

  • Manufacturer Part Number:

    6TPE100M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (SOLID POLYMER)

  • ESR:

    25 mΩ

  • Height:

    1.8 mm

  • JESD-609 Code:

    e4

  • Leakage Current:

    0.063 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    2400 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    PALLADIUM GOLD

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm
