6TPE470MZ - Panasonic

Description: Tantalum Capacitors - Polymer 6.3VDC 470uF 20% ESR 35mOhm

Download 6TPE470MZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
6TPE470MZ - Panasonic - PCB symbol
click to zoom

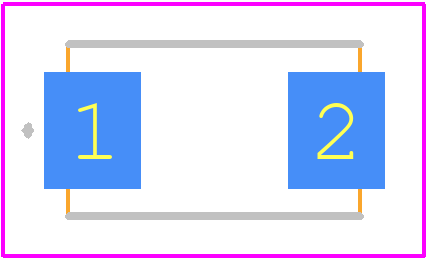

PCB Footprints
6TPE470MZ - Panasonic PCB footprint - Other - Other - 6TPE470MZ
click to zoom
3D Models
6TPE470MZ - Panasonic - 3D model - Other - 6TPE470MZ
click to zoom

6TPE470MZ Details

  • Manufacturer Part Number:

    6TPE470MZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Indonesia, Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.21.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ

  • Capacitance:

    470 µF

  • Capacitor Type:

    TANTALUM CAPACITOR

  • Dielectric Material:

    TANTALUM (SOLID POLYMER)

  • ESR:

    35 mΩ

  • Height:

    3.8 mm

  • Leakage Current:

    0.2961 mA

  • Length:

    7.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Ripple Current:

    2500 mA

  • Size Code:

    2917

  • Surface Mount:

    YES

  • Tan Delta:

    0.15

  • Terminal Shape:

    J BEND

  • Width:

    4.3 mm

6TPE470MZ Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point above 217°C. Apply a small amount of solder paste and ensure the component is properly aligned during the reflow process.
  • Panasonic recommends derating the voltage by 10% to 20% to ensure reliable operation and prevent overheating, especially in high-temperature applications.
  • While the component is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (>80% RH) without proper protection, such as conformal coating or potting, to prevent moisture ingress.
  • Store the components in a dry, cool place (<30°C, <60% RH) away from direct sunlight, and avoid exposing them to mechanical stress or vibration.
