Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the input and output pins, and a decoupling capacitor (e.g., 10uF) between the input pin and ground to reduce noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended derating guidelines, use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material to improve heat dissipation.
According to Panasonic, the maximum allowable voltage stress on the 6TPF220M6L during power-up or power-down is 1.5 times the rated voltage (220V) for a maximum duration of 100ms. Exceeding this limit may damage the device.
Yes, the 6TPF220M6L can be used in a parallel configuration to increase the current handling capability. However, it is essential to ensure that the devices are properly matched, and the PCB layout is designed to minimize current imbalance and thermal mismatch between the devices.
Panasonic recommends storing the 6TPF220M6L in a dry, cool place with a relative humidity of 60% or less, and a temperature range of 5°C to 30°C. Avoid storing the devices in direct sunlight or near heat sources.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6TPF220M6L Overview

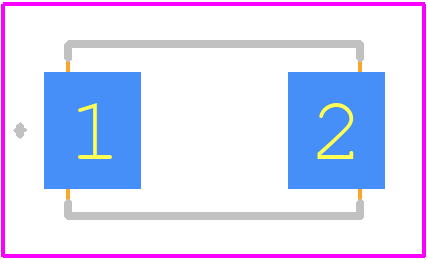

Use the download button to access the 6TPF220M6L schematic symbol, PCB footprint, and 3D model.
