6TPF330MAL - Panasonic

Description: Tantalum Capacitors - Polymer 6.3VDC 330uF 20% ESR 10mOhm

Download 6TPF330MAL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

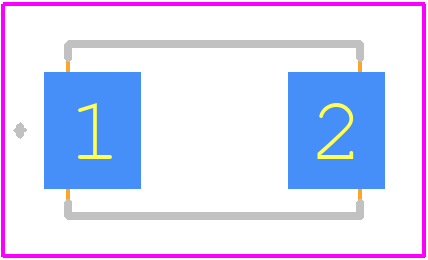

6TPF330MAL - Panasonic PCB footprint - Other - Other - 6TPF330MAL
