Part Image

7-146256-5 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: Board-to-Board Configuration Parallel | PCB Mount Orientation Vertical | Number of Positions 50 | Number of Rows 2 | Contact Features: PCB Contact Termination Area Plating Material Thickness 2.54 – 5.08 MICM | Contact Mating Area Plating Material Thickness 15 MICIN | Contact Current Rating (Max) 3 AMP | PCB Contact Termination Area Plating Material Finish Matte | Contact Underplating Material Nickel | Contact Underplating Material Thickn

Download 7-146256-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7-146256-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

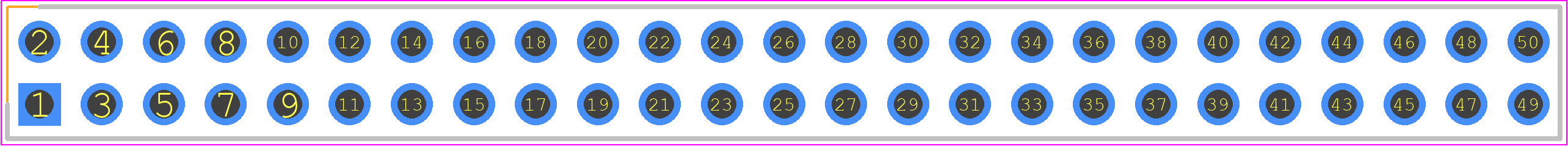

7-146256-5 - TE Connectivity PCB footprint - Header, Vertical - Header, Vertical - 7-146256-5
click to zoom
3D Models
7-146256-5 - TE Connectivity - 3D model - Header, Vertical - 7-146256-5
click to zoom

7-146256-5 Details

  • Manufacturer Part Number:

    7-146256-5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

7-146256-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 7-146256-5 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 1.5-2.5 Nm (13.3-22.1 in-lbs) for the jack screws.
  • Yes, the 7-146256-5 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 7-146256-5 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 and IP69K ingress protection ratings.
  • The 7-146256-5 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 7-146256-5 connector is part of the TE Connectivity AMPSEAL 16 connector family, which offers a range of compatible products and accessories for various applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7-146256-5 Overview

Use the download button to access the 7-146256-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7-146, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
