- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 7-173860-1
- Part Number 7-173860-1
- Manufacturer TE Connectivity
- Pin Count 16
- Part Category Connector
- Package Category Other

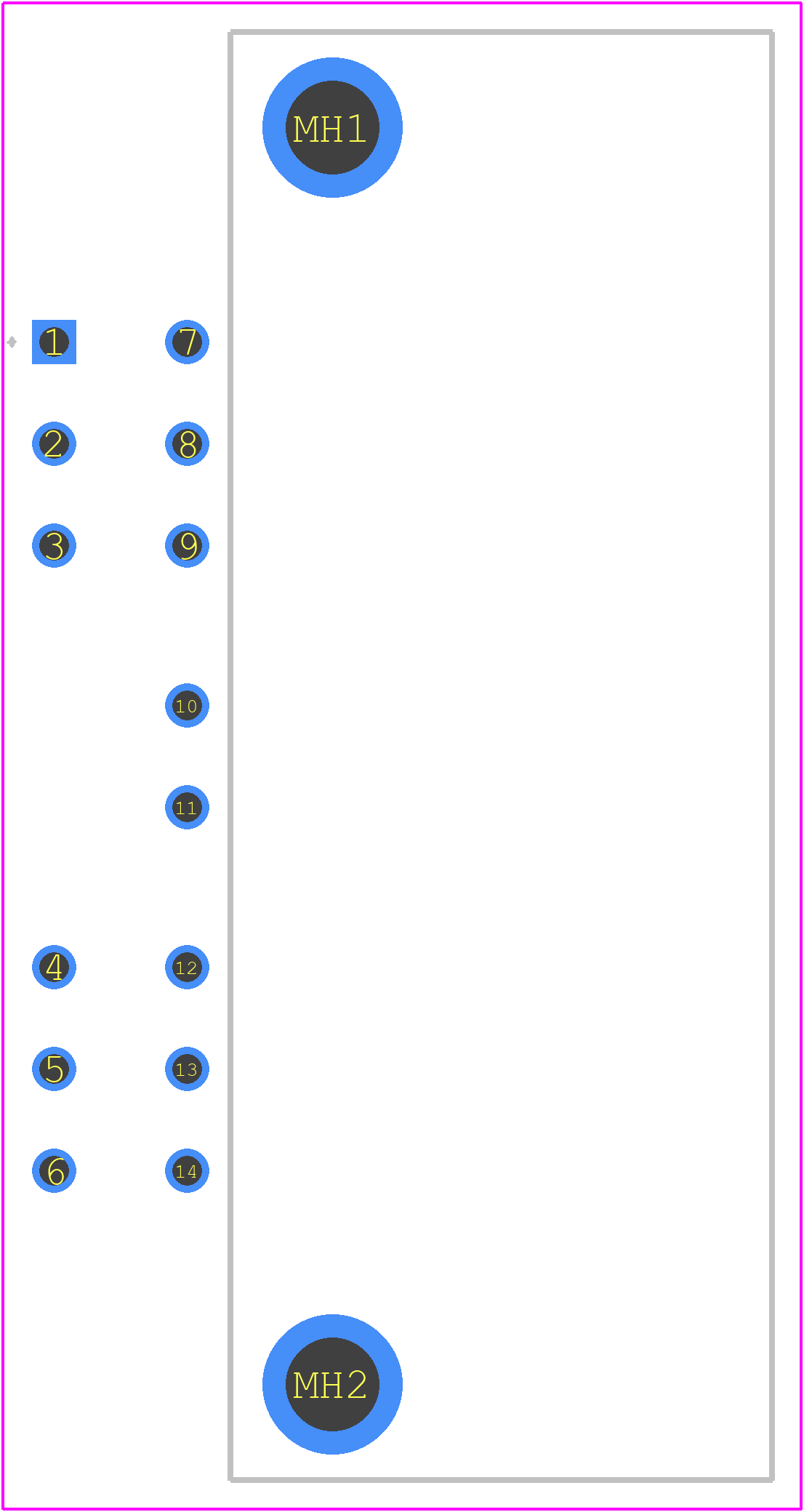

- Footprint Name Other - 7-173860-1-2
- Released Date Aug 18, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
7-173860-1 Details
-
Manufacturer Part Number:
7-173860-1
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
7-173860-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals of the 7-173860-1 connector is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 7-173860-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
-
The 7-173860-1 connector has a rating of IP67, which means it provides protection against solid objects and water ingress. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
-
The 7-173860-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 7-173860-1 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating to prevent damage or performance issues.
Trust Checks
Community Provided
System Verified
Community Approved
7-173860-1 Overview
Use the download button to access the 7-173860-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7-173,
or try a keyword search, such as Headers and Edge Type Connectors
About TE Connectivity
TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
