7-188431-6 - TE Connectivity

Description: Body Features: Primary Product Color Red | Connector Profile Standard | Configuration Features: Number of Rows 2 | PCB Mount Orientation Vertical | Number of Positions 6 | Contact Features: PCB Contact Termination Area Plating Material Thickness 118.11 – 196.85 MICIN | Contact Type Receptacle | PCB Contact Termination Area Plating Material Finish Matte | Contact Base Material Phosphor Bronze | Contact Mating Area Plating Material Tin | Contact Mating Area Plating Material Thickness 3 – 5 MICM | Contact

Download 7-188431-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

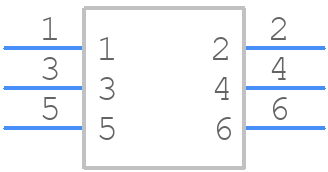

Symbol
7-188431-6 - TE Connectivity - PCB symbol
click to zoom

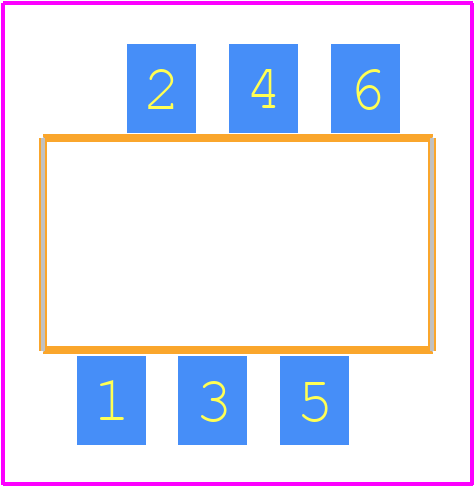

PCB Footprints
7-188431-6 - TE Connectivity PCB footprint - Other - Other - 7-188431-6-4
click to zoom
3D Models
7-188431-6 - TE Connectivity - 3D model - Other - 7-188431-6-4
click to zoom

7-188431-6 Details

  • Manufacturer Part Number:

    7-188431-6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    30 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    RED

  • Insulator Material:

    GLASS FILLED POLYAMIDE46

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mating Contact Row Spacing:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    196.85u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.5 A

  • Rated Voltage:

    100 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

7-188431-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 7-188431-6 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 7-188431-6 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and its connections to maintain its environmental rating.
  • The 7-188431-6 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the 7-188431-6 connector is designed for use with 18 AWG wire, it can accommodate wire sizes between 16 AWG and 20 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to maintain reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7-188431-6 Overview

Use the download button to access the 7-188431-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7-188, or try a keyword search, such as Headers and Edge Type Connectors
