Part Image

7-967288-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code A | Configuration Features: PCB Mount Orientation Horizontal | Number of Rows 4 | Number of Sections 5 | Number of Positions 134 | Number of Signal Positions 116 | Contact Features: Mating Tab Width .025 INCH | Mating Tab Width 3 MM | Mating Tab Width .118 INCH | Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Contact Type Tab | Contact Size 3mm | Mating Tab Thickness .031 INCH | Contact Size .63mm | Mating Tab

Download 7-967288-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7-967288-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

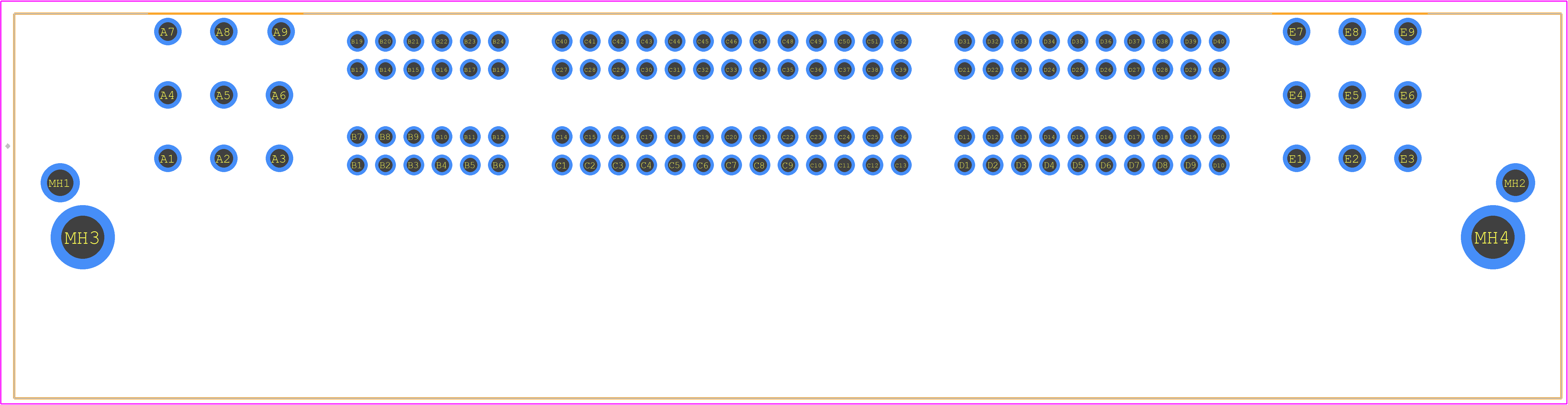

7-967288-1 - TE Connectivity PCB footprint - Other - Other - 7-967288-1-1
click to zoom
3D Models
7-967288-1 - TE Connectivity - 3D model - Other - 7-967288-1-1
click to zoom

7-967288-1 Details

  • Manufacturer Part Number:

    7-967288-1

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    1.362 inch

  • Body Length:

    5.551 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Arrangement:

    S116P18

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    4

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    134

7-967288-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the 7-967288-1 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.7-4.4 in-lbs) for the jack screws.
  • Yes, the 7-967288-1 connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the 7-967288-1 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance of up to 95% RH.
  • The 7-967288-1 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 7-967288-1 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors, ensuring seamless integration into your system.
