7005L35G footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

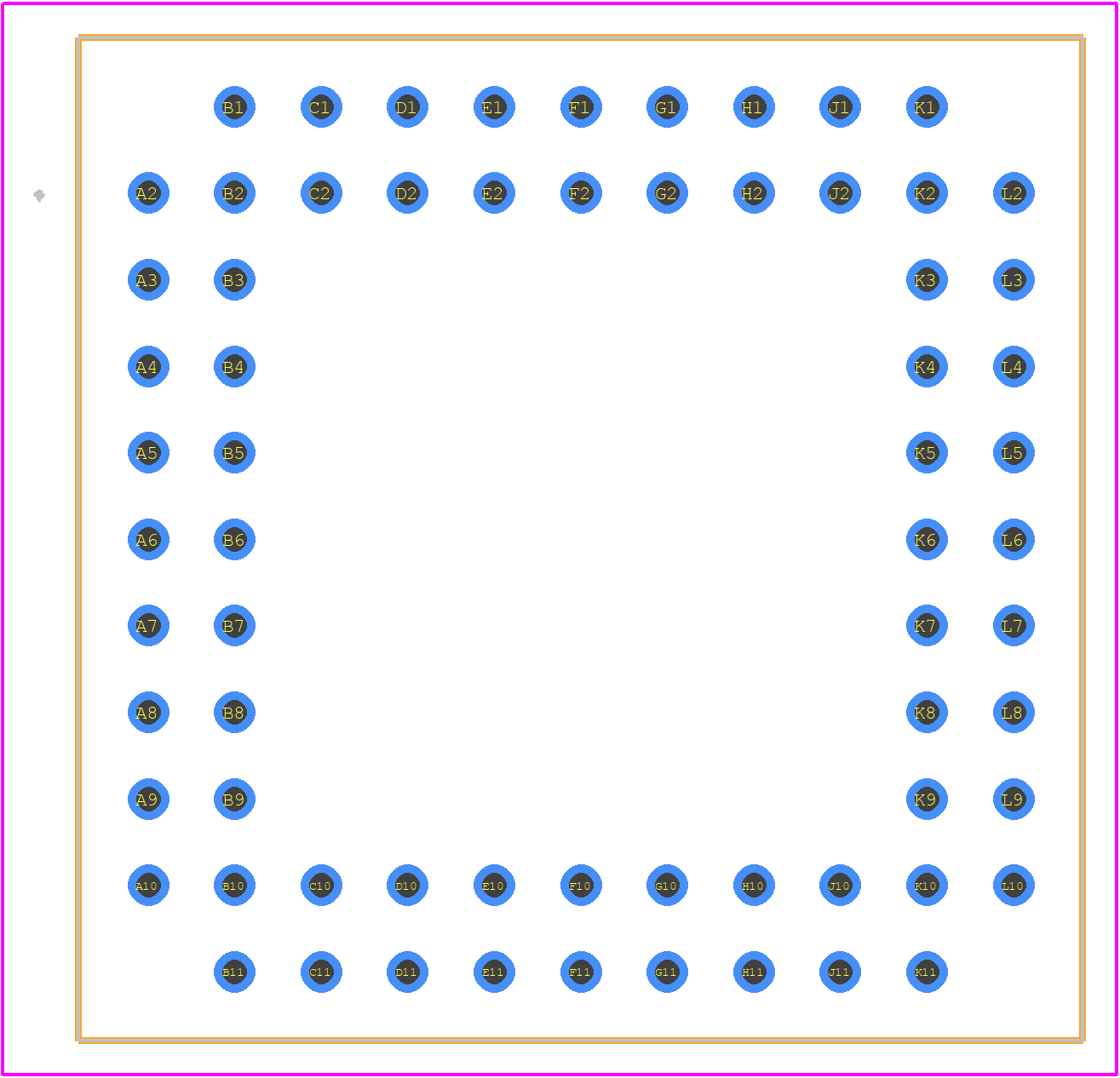

PCB Footprints

3D Models

7005L35G Details

Manufacturer Part Number:
7005L35G
Brand Name:
Renesas
Pbfree Code:
No
Part Life Cycle Code:
Active
Part Package Code:
PGA
Pin Count:
68
Manufacturer Package Code:
GU68
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
3
Access Time-Max:
35 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-CPGA-P68
JESD-609 Code:
e0
Length:
29.464 mm
Memory Density:
65536 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
8
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
68
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
70 °C
Organization:
8KX8
Output Characteristics:
3-STATE
Package Body Material:
CERAMIC, METAL-SEALED COFIRED
Package Code:
PGA
Package Equivalence Code:
PGA68,11X11
Package Shape:
SQUARE
Package Style:
GRID ARRAY
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
240
Qualification Status:
Not Qualified
Seated Height-Max:
5.27 mm
Standby Current-Max:
0.0015 A
Standby Voltage-Min:
2 V
Supply Current-Max:
0.29 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
NO
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Lead (Sn/Pb)
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
PERPENDICULAR
Width:
29.464 mm

The recommended operating temperature range for the 7005L35G is -40°C to 125°C, although it can tolerate storage temperatures from -55°C to 150°C.
The 7005L35G has an internal POR and BOR circuit. To handle these, ensure a stable power supply, use a capacitor on the VCC pin, and implement a reset circuit with a suitable resistor and capacitor values.
The 7005L35G can operate at a maximum clock frequency of 24 MHz, but it's recommended to use a clock frequency of 16 MHz or lower for optimal performance and power consumption.
To configure the UART, set the baud rate, data bits, parity, and stop bits according to your application's requirements. Ensure the UART clock is enabled, and use a suitable crystal oscillator or external clock source.
The internal voltage regulator generates a stable 3.3V output from the input voltage (VCC). To use it, connect the VCC pin to a suitable power source, and the internal regulator will provide a stable 3.3V output for the microcontroller's internal circuits.
