700DP7B10M7REH - E-Switch

Description: PUSHBUTTON, 0.4VA, 20VAC/VDC DPDT, On-(On) Panel Mount, Through Hole, Right Angle, Vertical, Rear

Download 700DP7B10M7REH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

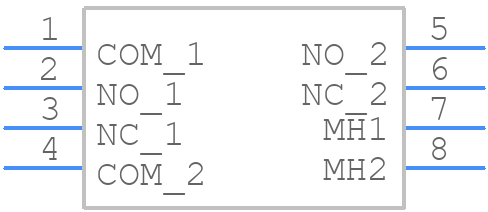

700DP7B10M7REH - E-Switch - PCB symbol
click to zoom
PCB Footprints

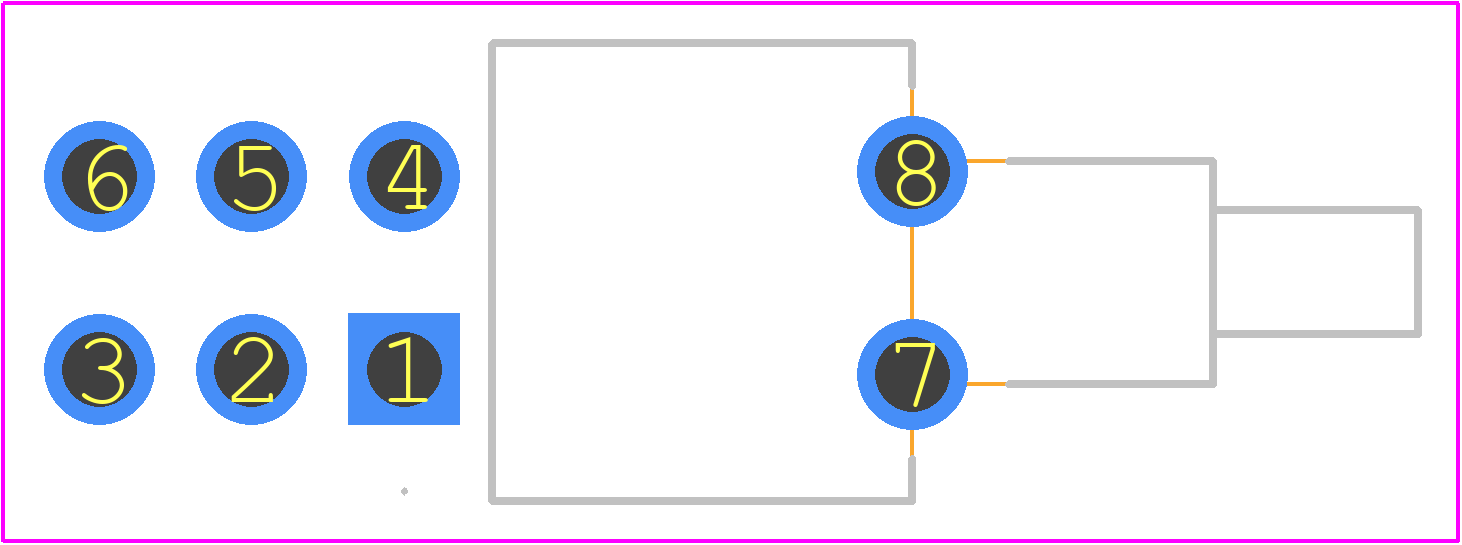

700DP7B10M7REH - E-Switch PCB footprint - Other - Other - 700DP7B10M7REH-1
click to zoom

700DP7B10M7REH Details

  • Manufacturer Part Number:

    700DP7B10M7REH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    MINIATURE SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

700DP7B10M7REH Overview

Use the download button to access the 700DP7B10M7REH schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 700DP, or try a keyword search, such as Pushbutton Switches
