700SP7B10M7RE footprint, schematic symbol and 3D model by E-Switch

Symbol

click to zoom

PCB Footprints

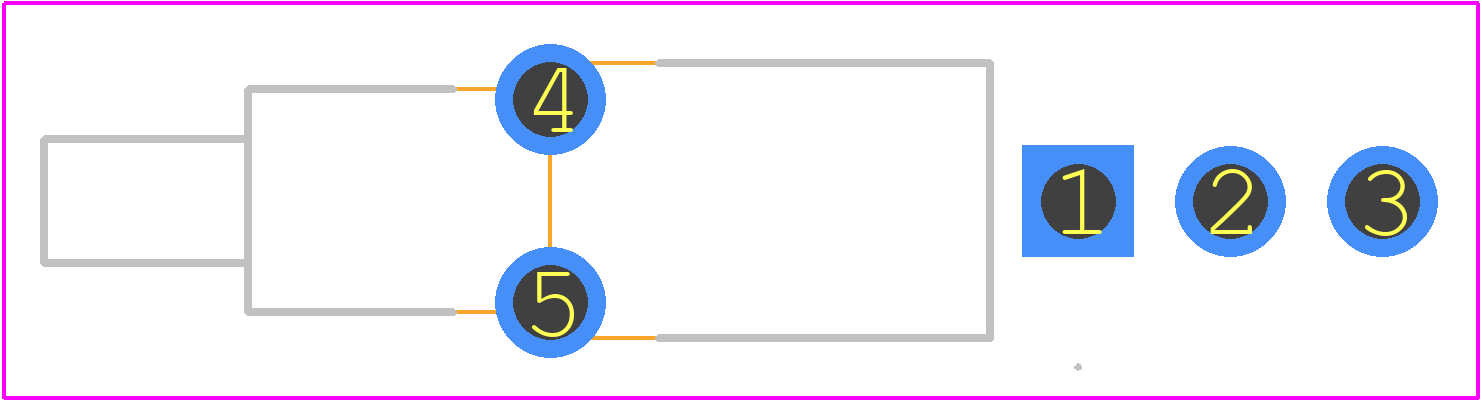

700SP7B10M7RE - E-Switch PCB footprint - Other - Other - 700SP7B10M7RE-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 700SP7B10M7RE
Part Number 700SP7B10M7RE
Manufacturer E-Switch
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - 700SP7B10M7RE-1
Released Date Oct 23, 2024
Last Modified Date Dec 31, 2024 12:57 PM UTC
Pinout / Pin List Click Here (Member Only)

700SP7B10M7RE Details

Manufacturer Part Number:
700SP7B10M7RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
Actuator Length:
0.202 inch
Actuator Travel:
1.016 mm
Actuator Type:
PUSHBUTTON
Body Breadth:
12.7 mm
Body Height:
20.828 mm
Body Length or Diameter:
6.858 mm
Bushing Diameter:
0.25 inch
Bushing Length:
0.296 inch
Bushing Type:
1/4-40
Center Contact Material:
COPPER ALLOY
Center Contact Plating:
GOLD
Contact (DC) Max Power Rating R Load:
0.4VA@20VDC
Contact Function:
ON-(ON)
Contact Resistance:
0.02 mΩ
Dielectric Withstand Volts:
1000VAC V
Electrical Life:
50000 Cycle(s)
End Contact Material:
COPPER ALLOY
End Contact Plating:
GOLD
Illumination:
NON-ILLUMINATED
Insulation Resistance:
1000000000 Ω
Insulator Material:
DIALLYL PHTHALATE
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE-RIGHT ANGLE
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
PCB Hole Count:
5
Surface Mount:
NO
Switch Action:
MOMENTARY
Switch Function:
SPDT
Switch Type:
PUSHBUTTON SWITCH
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier
Terminal Length:
0.125 inch
Termination Type:
SOLDER

700SP7B10M7RE Frequently Asked Questions (FAQs)

The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
Yes, the 700SP7B10M7RE is compatible with lead-free soldering processes. E-Switch Inc ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The maximum operating temperature range for the 700SP7B10M7RE is -20°C to 85°C (-4°F to 185°F). Operating the switch outside this range may affect its performance and lifespan.
It's not recommended to wash or clean the 700SP7B10M7RE with solvents, as they may damage the switch's internal components or compromise its sealing. Instead, use a soft, dry brush to remove any debris or contaminants.
The expected lifespan of the 700SP7B10M7RE switch is 10,000 to 20,000 cycles, depending on the operating conditions and usage. Proper installation, handling, and maintenance can help extend the switch's lifespan.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

700SP7B10M7RE Overview

Use the download button to access the 700SP7B10M7RE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 700SP, or try a keyword search, such as Pushbutton Switches
