700SP7B10VS2REH Details

• Manufacturer Part Number:

  700SP7B10VS2REH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  E-Switch Inc

• Actuator Length:

  0.202 inch

• Actuator Travel:

  0.9906 mm

• Actuator Type:

  PUSHBUTTON

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.29 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact (DC) Max Power Rating R Load:

  0.4VA@20VDC

• Contact Function:

  ON-(ON)

• Contact Resistance:

  0.02 mΩ

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

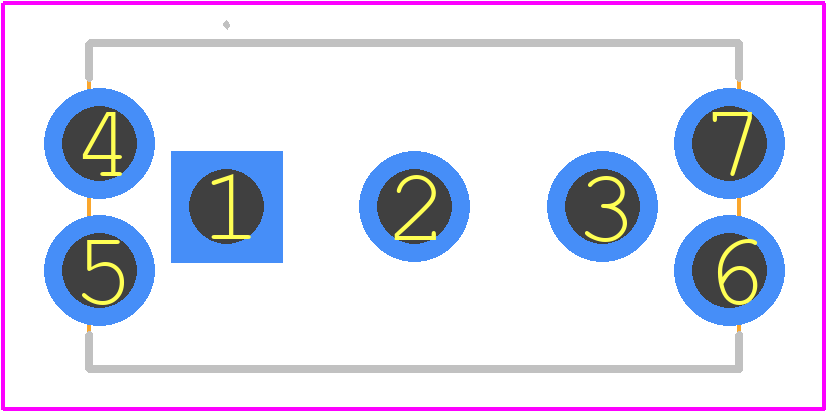

• PCB Hole Count:

  7

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  SPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Finish:

  Gold (Au) - with Nickel (Ni) barrier

• Termination Type:

  SOLDER
