70247-1054 - Molex

Description: MOLEX - 70247-1054 - CONNECTOR, HEADER, 10POS, 2ROW, 2.54MM

Download 70247-1054 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70247-1054 - Molex - PCB symbol
click to zoom
PCB Footprints

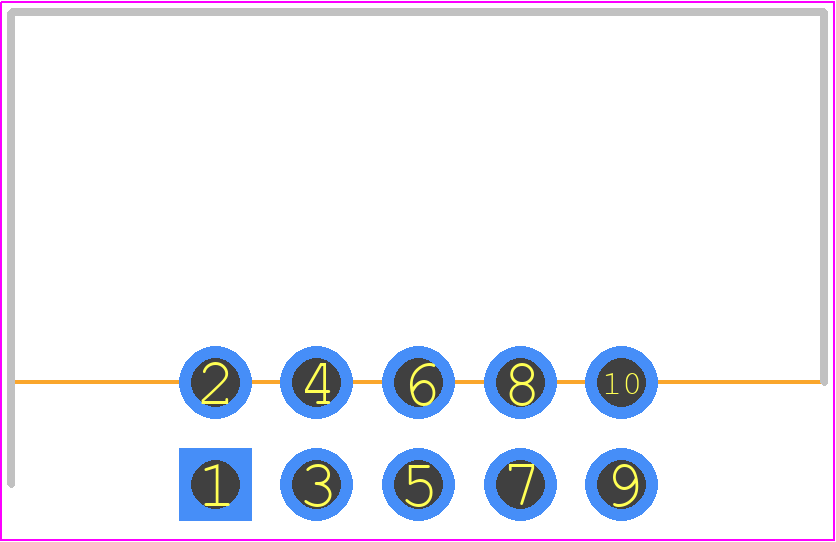

70247-1054 - Molex PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 70247-1054
click to zoom
3D Models
70247-1054 - Molex - 3D model - Header, Shrouded - Right Angle PTH Box - 70247-1054
click to zoom

70247-1054 Details

  • Manufacturer Part Number:

    70247-1054

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Ireland, Mainland China, Malaysia, Singapore, Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    SHROUDED

  • Body Breadth:

    0.35 inch

  • Body Depth:

    0.47 inch

  • Body Length:

    0.8 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Dielectric Withstanding Voltage:

    900VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    12000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    5u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    2.5 A

  • Reference Standard:

    UL, CSA

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

70247-1054 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the 702471054 connector is typically around 50-100 cycles, depending on the application and environmental conditions. However, it's essential to consult with Molex or a qualified engineer to determine the specific mating cycle requirements for your project.
  • The 702471054 connector is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Molex or a qualified engineer to determine the connector's suitability and potential modifications or additional components required to ensure reliable performance.
  • The maximum operating temperature for the 702471054 connector is typically around 105°C (221°F). However, it's essential to consult the datasheet and Molex's documentation for specific temperature ratings and derating factors for your application.
  • The 702471054 connector is designed for specific wire gauges and types. Using a different wire gauge or type may affect the connector's performance and reliability. It's recommended to consult with Molex or a qualified engineer to determine the compatibility of alternative wire configurations.
  • The recommended torque for the screw terminals on the 702471054 connector is typically around 0.5-1.5 Nm (0.37-1.06 lb-in). However, it's essential to consult the datasheet and Molex's documentation for specific torque ratings and guidelines for your application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

70247-1054 Overview

Use the download button to access the 70247-1054 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70247, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
