7024S35GB - Renesas Electronics

Description: The 7024 is a high-speed 4Kx 16 Dual-Port Static RAM designed to be used as a stand-alone 64K-bit Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 32-bit or more word systems. An automatic power down feature controlled by Chip Enable (CE) permits the on-chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.

Download 7024S35GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
7024S35GB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

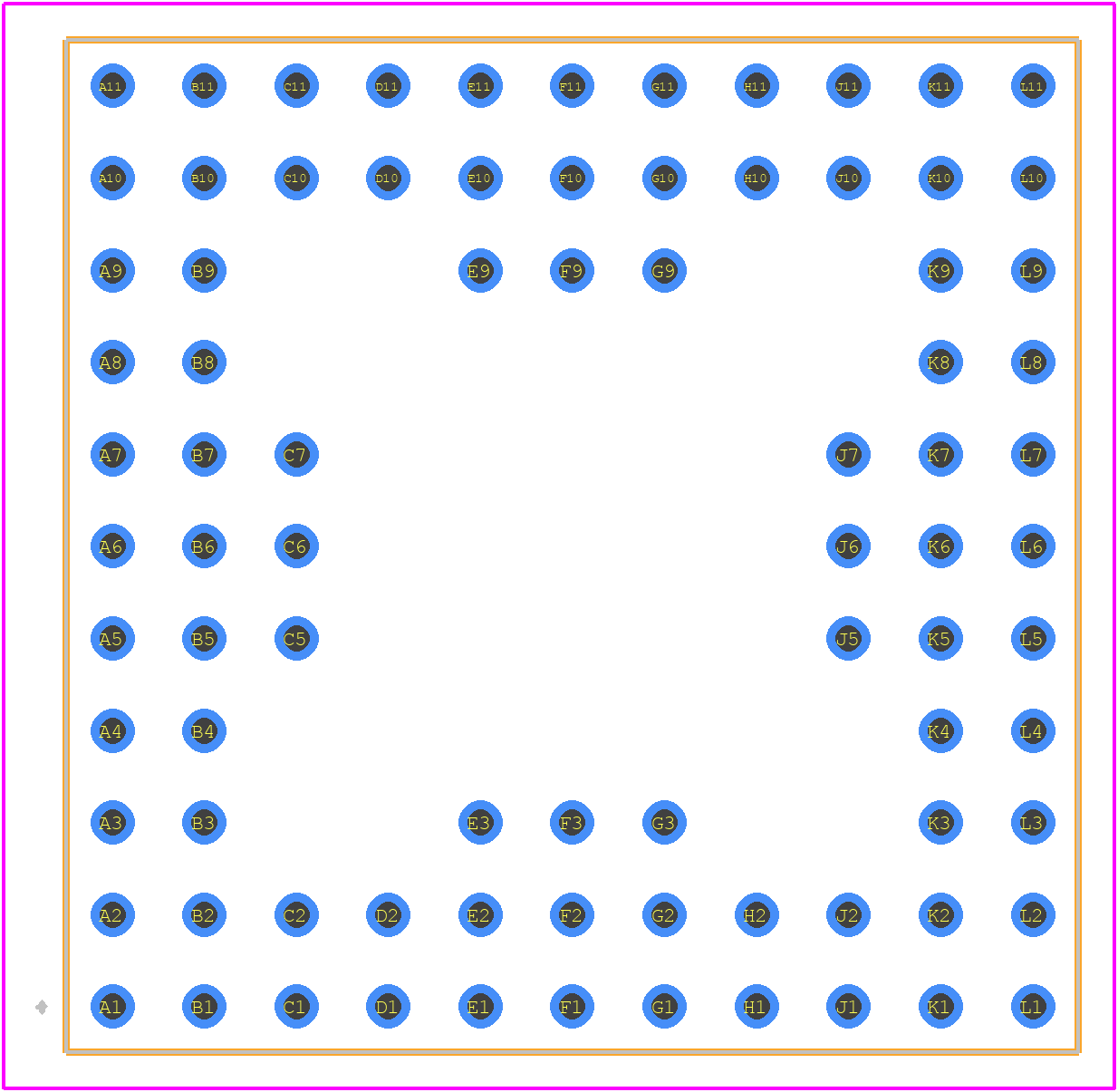

7024S35GB - Renesas Electronics PCB footprint - Other - Other - GU84_REV02
click to zoom
3D Models
7024S35GB - Renesas Electronics - 3D model - Other - GU84_REV02
click to zoom

7024S35GB Details

  • Manufacturer Part Number:

    7024S35GB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PGA

  • Pin Count:

    84

  • Manufacturer Package Code:

    GU84

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    35 ns

  • Additional Feature:

    INTERRUPT FLAG; SEMAPHORE; AUTOMATIC POWER-DOWN

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-CPGA-P84

  • JESD-609 Code:

    e0

  • Length:

    27.94 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    84

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    4KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    PGA

  • Package Equivalence Code:

    PGA84M,11X11

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    38535Q/M;38534H;883B

  • Seated Height-Max:

    5.207 mm

  • Standby Current-Max:

    0.03 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    27.94 mm

7024S35GB Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the 7024S35GB is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
  • To configure the 7024S35GB for low-power mode, set the clock control register (CKCR) to select the low-power clock source, and then set the power control register (PCR) to enable the low-power mode. Additionally, disable any unnecessary peripherals and adjust the clock frequency to minimize power consumption.
  • The maximum operating temperature range for the 7024S35GB is -40°C to +85°C, but this may vary depending on the specific package and application. Always check the datasheet and consult with Renesas support for specific temperature range requirements.
  • To implement a watchdog timer on the 7024S35GB, configure the watchdog timer control register (WTCSR) to enable the watchdog timer, set the watchdog timer period, and enable the watchdog timer interrupt. The watchdog timer will reset the microcontroller if it does not receive a watchdog timer refresh within the set period.
  • The maximum current consumption of the 7024S35GB varies depending on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is approximately 15 mA at 5 V and 20 MHz, but this may vary depending on the specific application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7024S35GB Overview

Use the download button to access the 7024S35GB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7024S, or try a keyword search, such as SRAMs
