7025L20JGI footprint, schematic symbol and 3D model by Renesas Electronics

Symbol

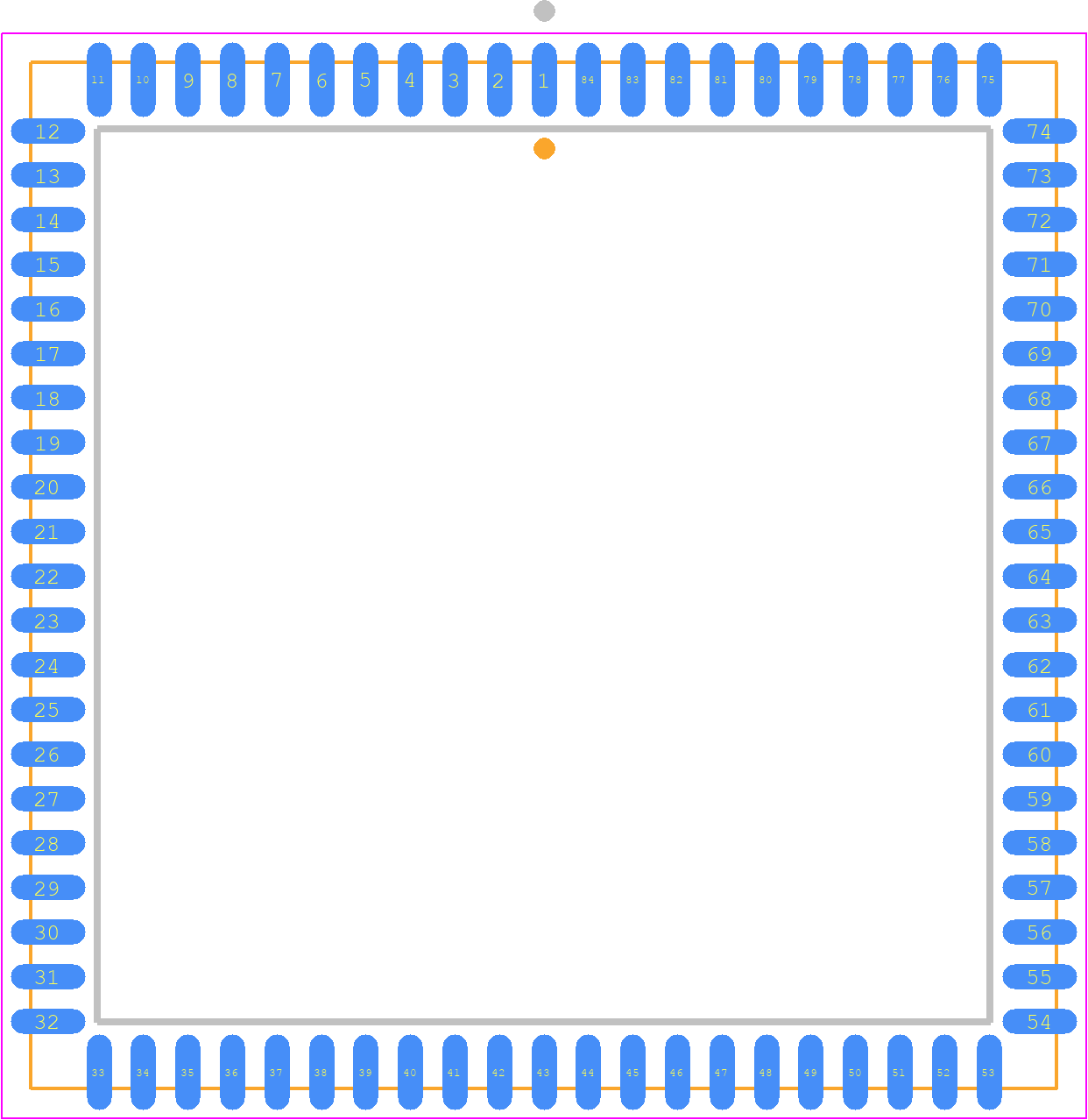

PCB Footprints

7025L20JGI Details

Manufacturer Part Number:
7025L20JGI
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
PLCC
Pin Count:
84
Manufacturer Package Code:
PLG84
ECCN Code:
EAR99
HTS Code:
8542.32.00.41
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
0
Access Time-Max:
20 ns
Additional Feature:
INTERRUPT FLAG; AUTOMATIC POWER-DOWN; SEMAPHORE; BATTERY BACKUP
I/O Type:
COMMON
JESD-30 Code:
S-PQCC-J84
JESD-609 Code:
e3
Length:
29.21 mm
Memory Density:
131072 bit
Memory IC Type:
MULTI-PORT SRAM
Memory Width:
16
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Ports:
2
Number of Terminals:
84
Number of Words:
8192 words
Number of Words Code:
8000
Operating Mode:
ASYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
8KX16
Output Characteristics:
3-STATE
Output Enable:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
QCCJ
Package Equivalence Code:
LDCC84,1.2SQ
Package Shape:
SQUARE
Package Style:
CHIP CARRIER
Parallel/Serial:
PARALLEL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
4.63 mm
Standby Current-Max:
0.004 A
Supply Current-Max:
0.24 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
J BEND
Terminal Pitch:
1.27 mm
Terminal Position:
QUAD
Width:
29.21 mm

The recommended operating temperature range for the 7025L20JGI is -40°C to +85°C, but it can tolerate storage temperatures from -55°C to +125°C.
The 7025L20JGI has a flexible clock system that can be configured using the Clock Control Register (CCR). You can select the clock source, divider, and multiplier to achieve the desired clock frequency. Refer to the user manual for detailed instructions.
The maximum current consumption of the 7025L20JGI depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is approximately 350 mA at 20 MHz and 3.3 V.
The 7025L20JGI has several low-power modes, including Sleep, Stop, and Hibernate. You can use the Power Management Controller (PMC) to configure these modes and reduce power consumption. Refer to the user manual for detailed instructions.
The maximum frequency for the UART interface on the 7025L20JGI is 3.125 Mbps. However, the actual frequency may be limited by the baud rate generator and the clock frequency.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 7025L20JGI schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 7025L, or try a keyword search, such as SRAMs
