- Part Number 703W-00/52
- Manufacturer Qualtek
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - 703W-00/52-2
- Released Date Dec 7, 2017
- Last Modified Date Mar 10, 2025 12:45 PM UTC
- Pinout / Pin List Click Here (Member Only)
703W-00/52 Details
-
Manufacturer Part Number:
703W-00/52
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Qualtek Electronics Corporation
-
YTEOL:
8
-
Additional Feature:
STANDARDS: CSA; UL; VDE
703W-00/52 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
-
Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the component. Monitor the component's temperature and adjust the system design accordingly.
-
Exceeding maximum ratings can lead to reduced lifespan, permanent damage, or even catastrophic failure. Ensure that the component operates within its specified voltage, current, and power ratings to avoid such consequences.
-
While the 703W-00/52 is designed to be robust, high-vibration environments can still affect its performance. Consider using additional mechanical support or vibration-dampening materials to ensure reliable operation.
-
Start by consulting the datasheet and application notes. Check for proper component orientation, soldering, and PCB layout. Use oscilloscopes or logic analyzers to debug signal issues. If problems persist, contact Qualtek Electronics Corporation's technical support.
Trust Checks
Expert Contribution
System Verified
Community Approved
703W-00/52 Overview

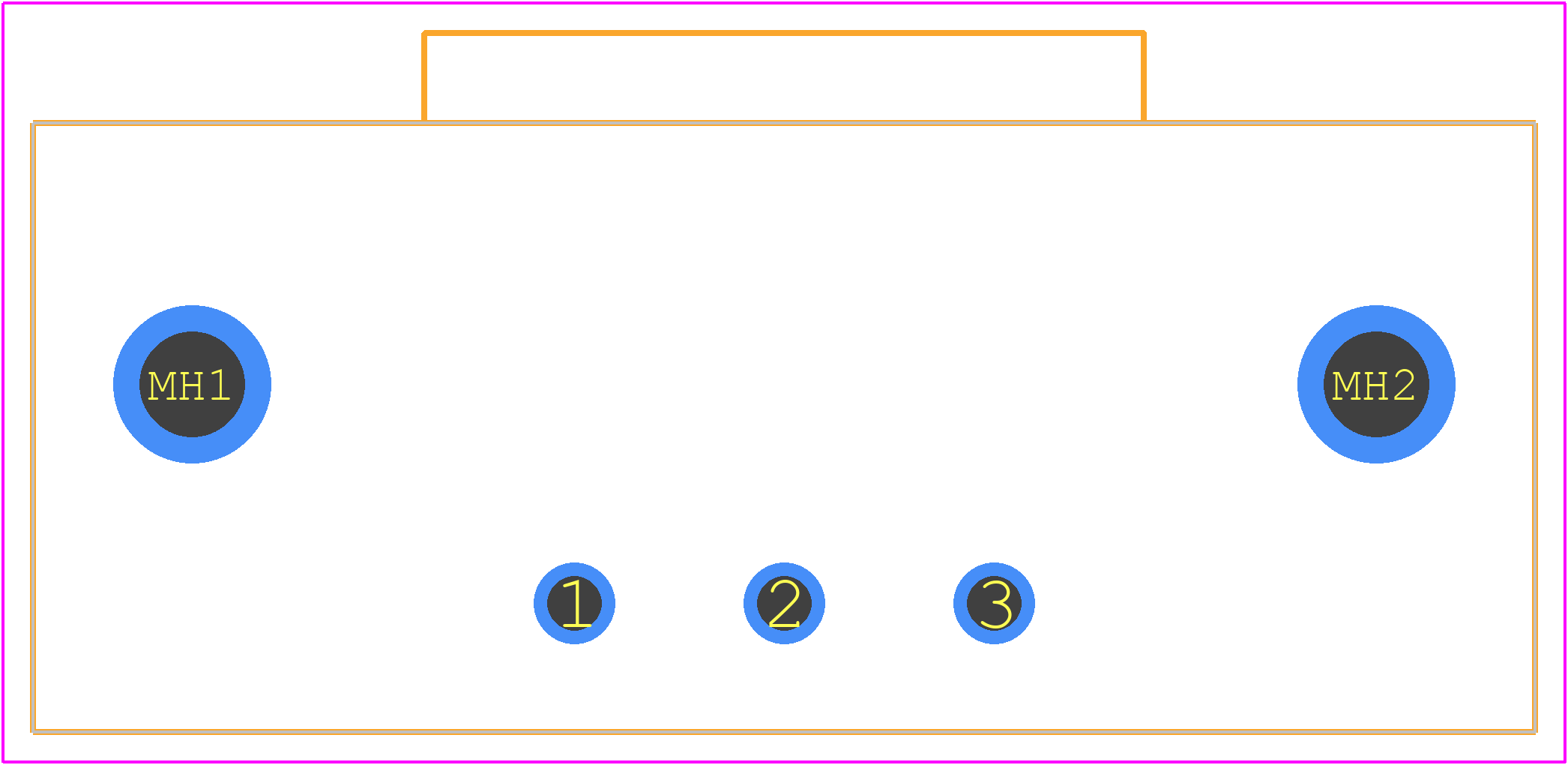

Use the download button to access the 703W-00/52 schematic symbol, PCB footprint, and 3D model.
