- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 703W-00/53
- Part Number 703W-00/53
- Manufacturer Qualtek
- Pin Count 5
- Part Category Connector
- Package Category Other

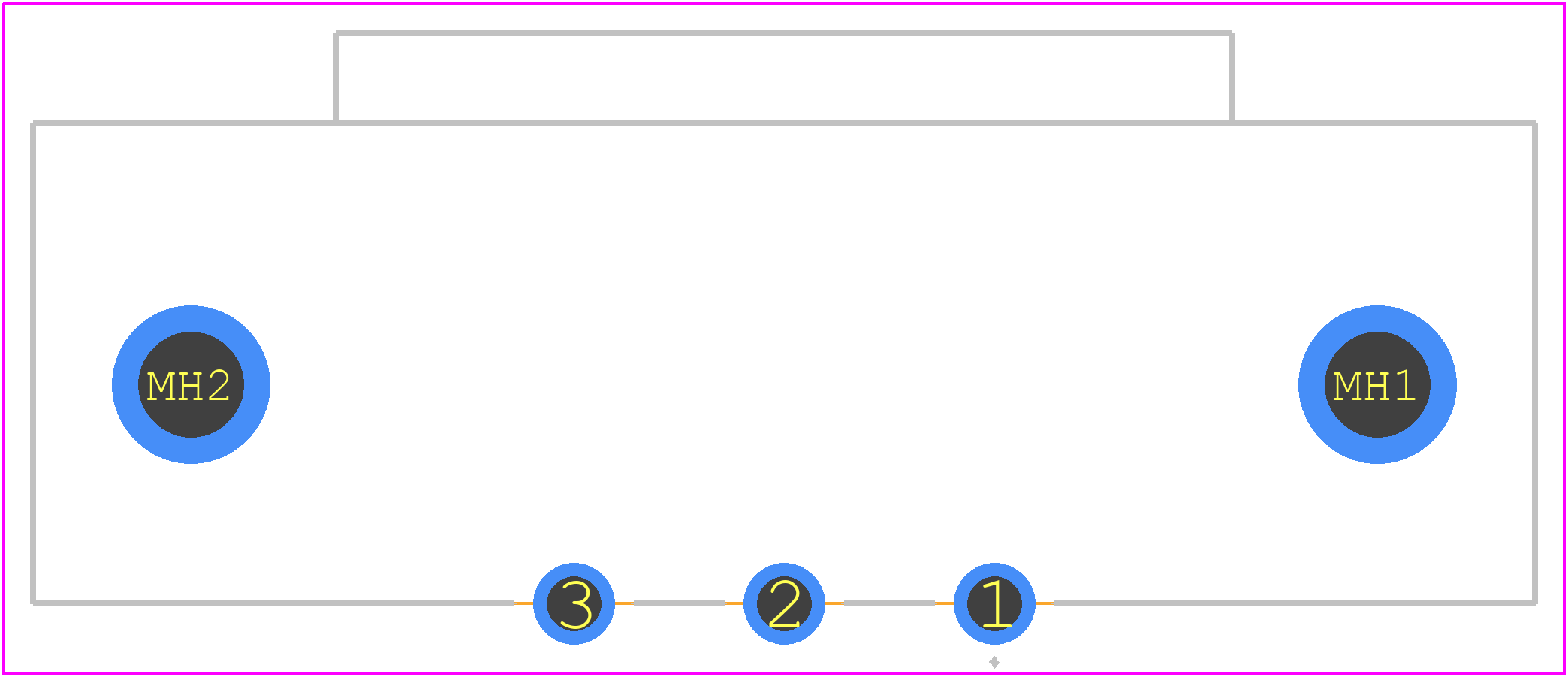

- Footprint Name Other - 703W-00/53-3
- Released Date Aug 10, 2017
- Last Modified Date Aug 7, 2025 5:45 AM UTC
- Pinout / Pin List Click Here (Member Only)
703W-00/53 Details
-
Manufacturer Part Number:
703W-00/53
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Qualtek Electronics Corporation
-
YTEOL:
8
-
Body/Shell Style:
RECEPTACLE
-
Connector Type:
MAINS POWER CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
703W-00/53 Frequently Asked Questions (FAQs)
-
Store the component in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
-
While the 703W-00/53 is designed to withstand some vibration, it's recommended to consult with the manufacturer or a qualified engineer to determine the suitability of the component for high-vibration applications.
-
The recommended soldering temperature is 250°C (482°F) with a soldering time of 3-5 seconds. However, it's recommended to consult the manufacturer's soldering guidelines for specific instructions.
-
Yes, the 703W-00/53 is designed to be RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, but it's recommended to verify this with the manufacturer or supplier.
-
The typical lead time for delivery of the 703W-00/53 varies depending on the supplier, quantity, and location. It's recommended to check with the supplier or manufacturer for the most up-to-date lead time information.
Trust Checks
Expert Contribution
System Verified
Community Approved
703W-00/53 Overview
Use the download button to access the 703W-00/53 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 703W-,
or try a keyword search, such as Mains Power Connectors
