70551-0075 - Molex

Description: Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)

Download 70551-0075 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
70551-0075 - Molex - PCB symbol
click to zoom
PCB Footprints

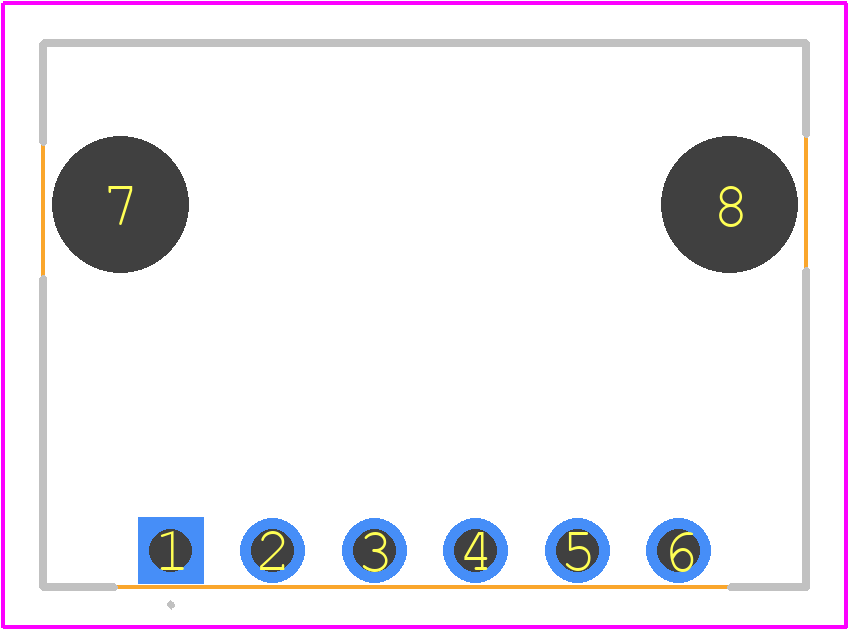

70551-0075 - Molex PCB footprint - Other - Other - 70551-0075-1
click to zoom
3D Models
70551-0075 - Molex - 3D model - Other - 70551-0075-1
click to zoom

70551-0075 Details

  • Manufacturer Part Number:

    70551-0075

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    9.1

  • Additional Feature:

    SL, POLARIZED

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body Breadth:

    0.275 inch

  • Body Depth:

    0.535 inch

  • Body Length:

    0.623 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    800VAC V

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    2.0016 N

  • Insulation Resistance:

    10000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    15u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

70551-0075 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 70551-0075 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 70551-0075 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environment applications, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 70551-0075 connector. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.
  • Yes, when designing the PCB layout, ensure that the connector's footprint is accurately represented, and the PCB material is compatible with the connector's soldering process. Additionally, consider the connector's height and width to ensure proper clearance and avoid any potential interference with other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

70551-0075 Overview

Use the download button to access the 70551-0075 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70551, or try a keyword search, such as Headers and Edge Type Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
