70T3719MS166BBG - Renesas Electronics

Description: The 70T3719M is a high-speed 256K x 72 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T3719M can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.

Download 70T3719MS166BBG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

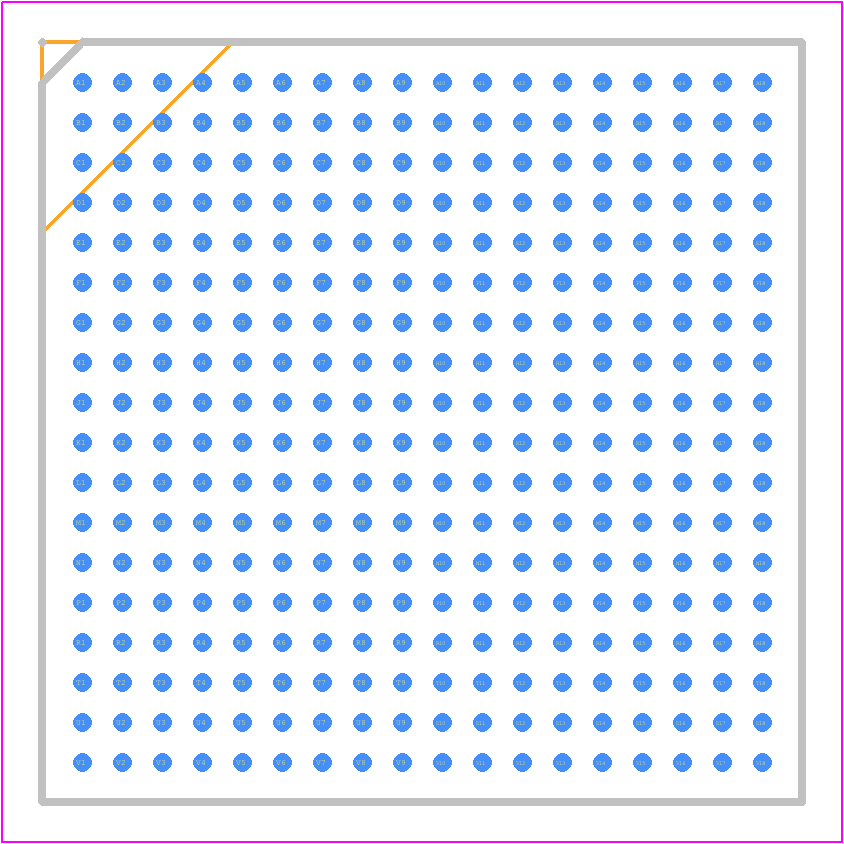

70T3719MS166BBG - Renesas Electronics PCB footprint - BGA - BGA - BBG324_1
click to zoom
3D Models
70T3719MS166BBG - Renesas Electronics  - 3D model - BGA - BBG324_1
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

70T3719MS166BBG Overview

Use the download button to access the 70T3719MS166BBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70T37, or try a keyword search, such as SRAMs
