Description:The 70V3319 is a high-speed 256K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70V3319 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 3.3V.
Renesas provides a reference design guide for the 70V3319S133PRFGI, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, reduce thermal issues, and prevent damage to the device.
Renesas recommends using a power management IC (PMIC) specifically designed for the 70V3319S133PRFGI. The PMIC should be able to provide the required voltage rails, power sequencing, and voltage regulation. Renesas provides a list of recommended PMICs and application notes for power sequencing and voltage regulation.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 0.1uF to 1uF, placed as close as possible to the power pins of the 70V3319S133PRFGI. The capacitors should be rated for the maximum operating voltage and have a low inductance to minimize noise and voltage droop.
Renesas recommends following the guidelines for signal integrity and noise reduction provided in the application notes and reference design guides. This includes using differential signaling, impedance matching, and proper termination, as well as minimizing trace lengths and using shielding and grounding techniques to reduce electromagnetic interference (EMI).
Renesas recommends using a high-quality clock source with a low jitter and phase noise. The clock signal should be generated using a crystal oscillator or a phase-locked loop (PLL) and distributed using a clock distribution network with minimal skew and jitter. Renesas provides guidelines for clock signal generation and distribution in the application notes and reference design guides.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
70V3319S133PRFGI Overview

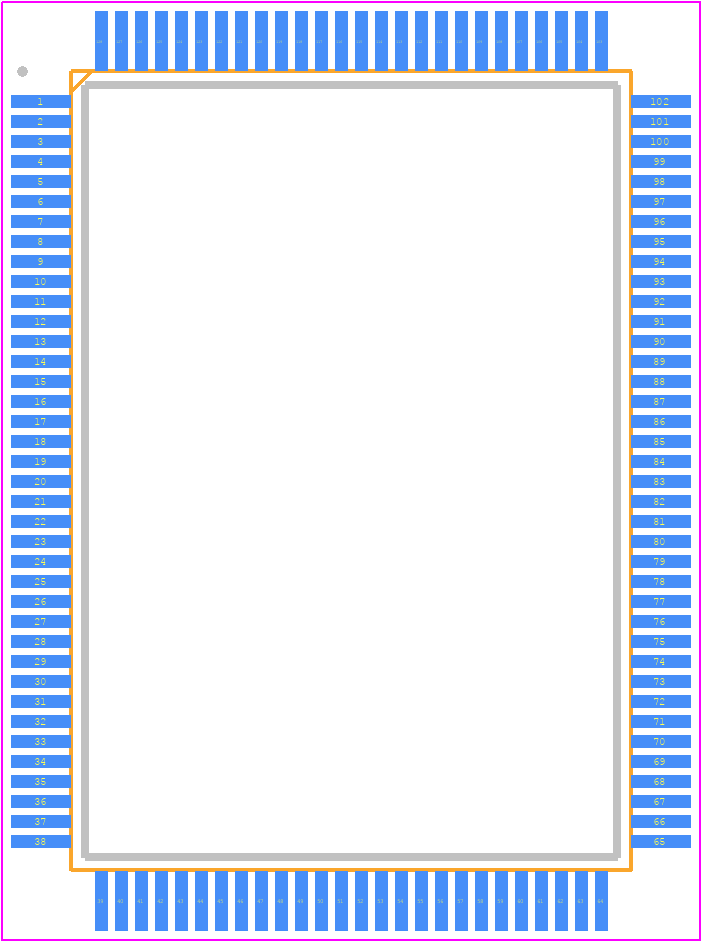

Use the download button to access the 70V3319S133PRFGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 70V33,
or try a keyword search, such as SRAMs
