70V3379S4PRFG - Renesas Electronics

Description: The 70V3379 is a high-speed 32K x 18 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70V3379 can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 3.3V.

Download 70V3379S4PRFG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

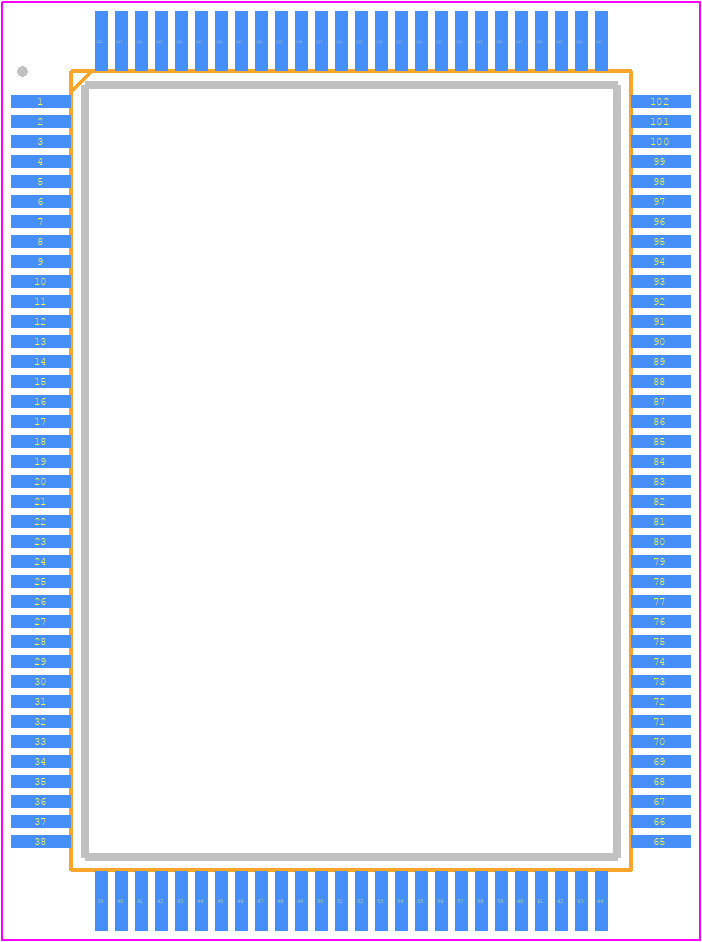

70V3379S4PRFG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PKG128_
click to zoom
3D Models
70V3379S4PRFG - Renesas Electronics  - 3D model - Quad Flat Packages - PKG128_
click to zoom

70V3379S4PRFG Details

  • Manufacturer Part Number:

    70V3379S4PRFG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TQFP

  • Pin Count:

    128

  • Manufacturer Package Code:

    PKG128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    4.2 ns

  • Additional Feature:

    PIPELINED OUTPUT MODE; SELF TIMED WRITE CYCLE

  • Clock Frequency-Max (fCLK):

    133 MHz

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PQFP-G128

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Memory Density:

    589824 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    18

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    128

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    32KX18

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP128,.63X.87,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.46 mA

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

70V3379S4PRFG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 70V3379S4PRFG is -40°C to 85°C, as specified in the datasheet.
  • The power-up sequence for the 70V3379S4PRFG should follow the recommended sequence in the datasheet, which is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization and prevents damage to the device.
  • The maximum clock frequency supported by the 70V3379S4PRFG is 133 MHz, as specified in the datasheet. However, it's essential to consider the system's overall timing budget and signal integrity when operating at higher frequencies.
  • The reset signal for the 70V3379S4PRFG should be asserted low for at least 10 ns to ensure a proper reset. The reset signal should also be synchronized with the clock signal to prevent metastability issues.
  • The recommended termination scheme for the 70V3379S4PRFG's output signals is to use a 50-ohm termination resistor to VCC or VDD, depending on the specific output signal. This helps to reduce signal reflections and improve signal integrity.
