70V657S12BCGI - Renesas Electronics

70V657S12BCGI Details

• Manufacturer Part Number:

  70V657S12BCGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  CABGA

• Pin Count:

  256

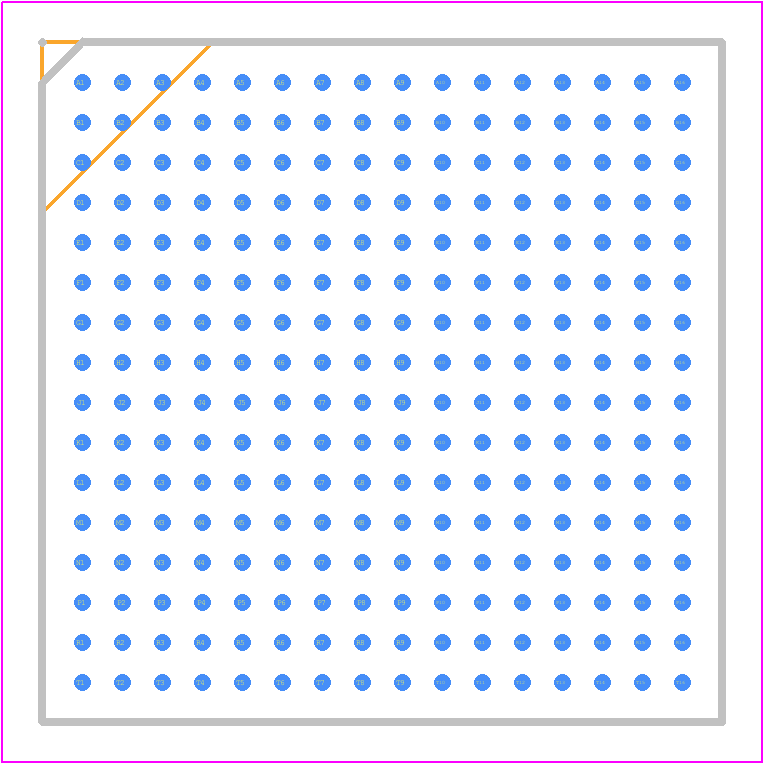

• Manufacturer Package Code:

  BCG256

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.B.2.A

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  5

• Access Time-Max:

  12 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  S-PBGA-B256

• JESD-609 Code:

  e1

• Length:

  17 mm

• Memory Density:

  1179648 bit

• Memory IC Type:

  MULTI-PORT SRAM

• Memory Width:

  36

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  256

• Number of Words:

  32768 words

• Number of Words Code:

  32000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32KX36

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA256,16X16,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.5 mm

• Standby Current-Max:

  0.015 A

• Standby Voltage-Min:

  3.15 V

• Supply Current-Max:

  0.515 mA

• Supply Voltage-Max (Vsup):

  3.45 V

• Supply Voltage-Min (Vsup):

  3.15 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  17 mm
