71016S20YG8 - Renesas Electronics

Description: The 71016 5V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71016 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71016S20YG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

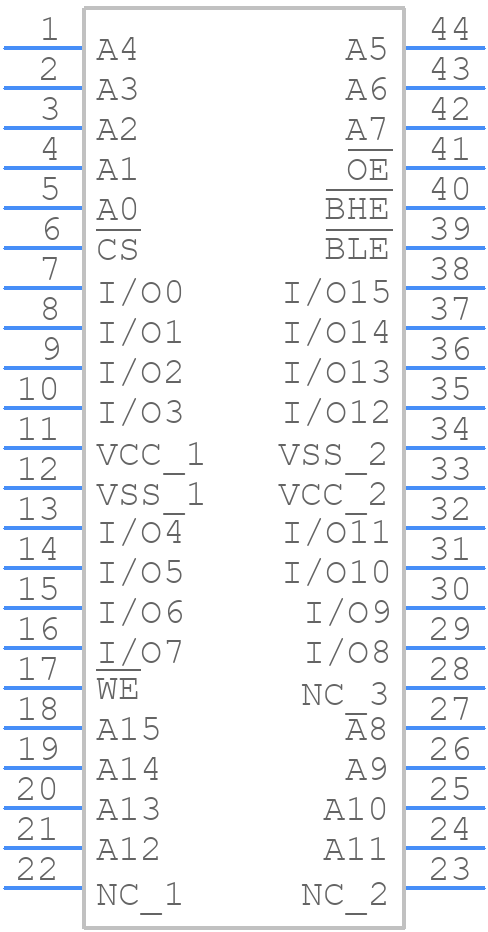

Symbol
71016S20YG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71016S20YG8 - Renesas Electronics PCB footprint - Other - Other - PBG44
click to zoom
3D Models
71016S20YG8 - Renesas Electronics - 3D model - Other - PBG44
click to zoom

71016S20YG8 Details

  • Manufacturer Part Number:

    71016S20YG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    44

  • Manufacturer Package Code:

    PBG44

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J44

  • JESD-609 Code:

    e3

  • Length:

    28.575 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    64KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ44,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71016S20YG8 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71016S20YG8 is -40°C to 85°C, but it can tolerate storage temperatures from -55°C to 125°C.
  • The clock settings for the 71016S20YG8 can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for detailed instructions.
  • The maximum frequency for the 71016S20YG8's CPU clock is 20 MHz, but it can be adjusted using the clock control registers.
  • The 71016S20YG8 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the user manual for detailed instructions.
  • The maximum current consumption of the 71016S20YG8 varies depending on the operating mode and frequency. However, the typical current consumption is around 10 mA at 20 MHz with all peripherals enabled.
