71024S15TYGI8 - Renesas Electronics

Description: The 71024 5V CMOS SRAM is organized as 128K x 8. All bidirectional inputs and outputs of the 71024 are TTL-compatible, and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71024S15TYGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

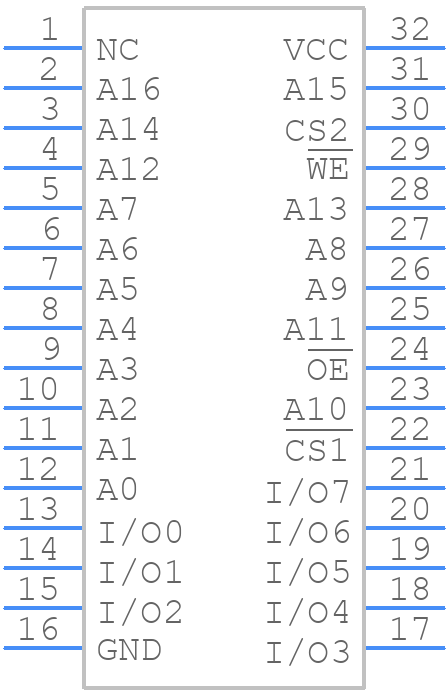

Symbol
71024S15TYGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71024S15TYGI8 - Renesas Electronics PCB footprint - Other - Other - PJG32
click to zoom
3D Models
71024S15TYGI8 - Renesas Electronics - 3D model - Other - PJG32
click to zoom

71024S15TYGI8 Details

  • Manufacturer Part Number:

    71024S15TYGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PJG32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    15 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.96 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.34

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.76 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.155 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.62 mm

71024S15TYGI8 Frequently Asked Questions (FAQs)

  • Renesas recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power plane.
  • Renesas recommends using a heat sink with a thermal resistance of 10°C/W or lower, and ensuring good airflow around the device. Additionally, consider using a thermal interface material with a thermal conductivity of 1 W/m-K or higher.
  • Renesas recommends using a low-ESR ceramic capacitor with a capacitance of 10 μF or higher, and a voltage rating of 25 V or higher. The capacitor should be placed as close to the VIN pin as possible.
  • Renesas recommends using a shielded enclosure, keeping the switching node (SW) away from sensitive analog circuits, and using a common-mode choke or ferrite bead on the output cables to reduce EMI emissions.
  • Renesas recommends applying the input voltage (VIN) before the enable signal (EN). The enable signal should be asserted after the input voltage has reached its nominal value.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

71024S15TYGI8 Overview

Use the download button to access the 71024S15TYGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71024, or try a keyword search, such as SRAMs
