7103-12-1010 - Coto Technology

7103-12-1010 Details

• Manufacturer Part Number:

  7103-12-1010

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.60

• Manufacturer:

  Coto Technology USA

• YTEOL:

  8

• Additional Feature:

  SHIELDED

• Body Breadth:

  16.76 mm

• Body Height:

  9.52 mm

• Body Length or Diameter:

  30.23 mm

• Coil Current(DC)-Max:

  0.015 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  180 mW

• Coil Release Voltage(DC):

  1 V

• Coil Resistance:

  800 Ω

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  0.5A@200VAC

• Contact Current(AC)-Max:

  0.5 A

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Rating R Load:

  0.5A@200VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  200 V

• Contact Voltage(DC)-Max:

  200 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  1000000000 Cycle(s)

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000000 Ω

• JESD-609 Code:

  e3

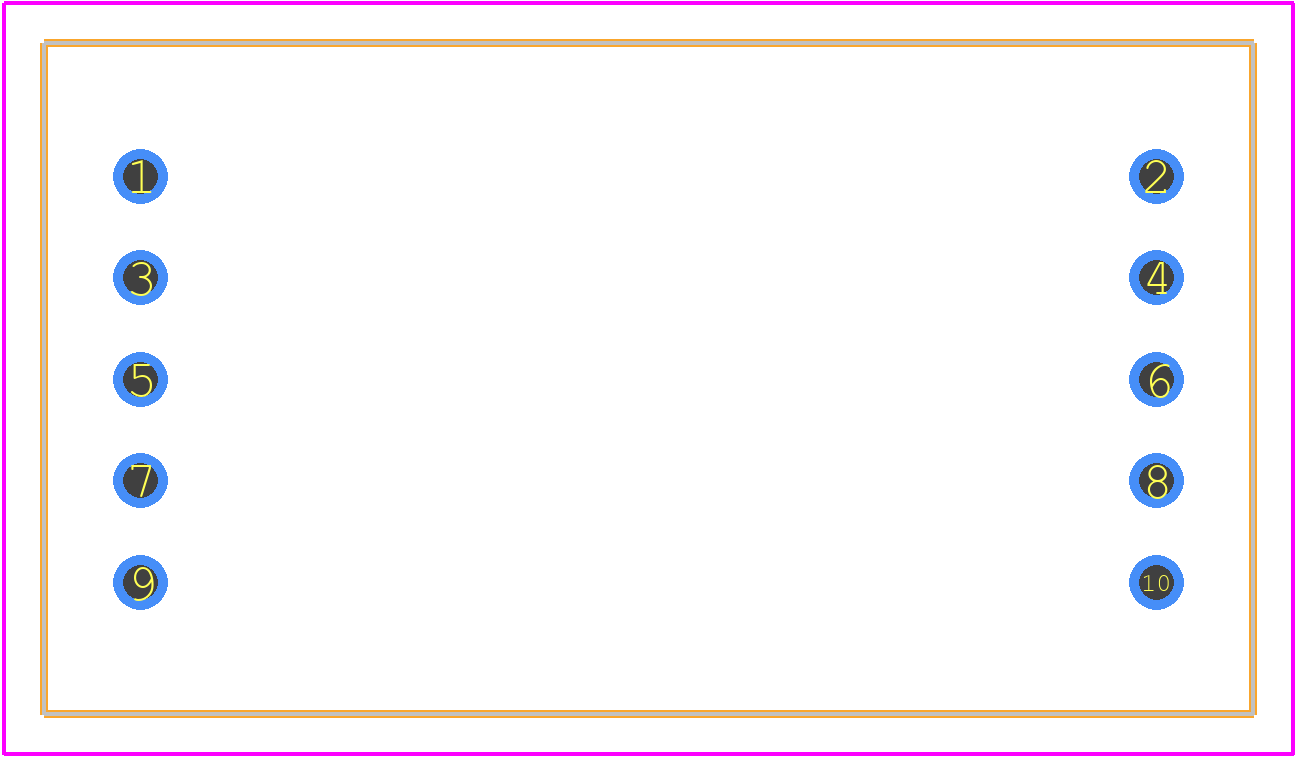

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  1 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Physical Dimension:

  30.23mm x 16.76mm x 9.52mm

• Relay Action:

  MBB

• Relay Form:

  3 FORM A

• Relay Function:

  3PST

• Relay Type:

  DRY REED RELAY

• Release Time:

  0.1 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Length:

  0.003200406400812802 inch

• Termination Type:

  SOLDER
