Symbol

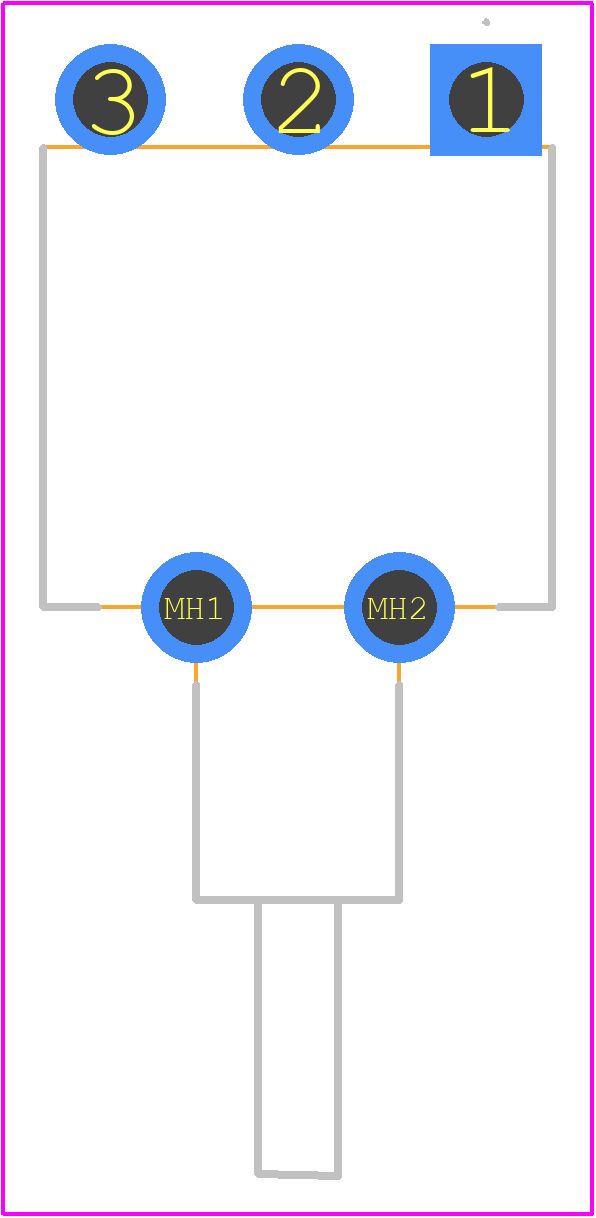

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 7103MDABE
- Part Number 7103MDABE
- Manufacturer LITTELFUSE
- Pin Count 5
- Part Category Switch
- Package Category Other
- Footprint Name Other - 7103MDABE-3
- Released Date Mar 8, 2022
- Last Modified Date Apr 10, 2026 9:41 PM UTC
- Pinout / Pin List Click Here (Member Only)
7103MDABE Details
-
Manufacturer Part Number:
7103MDABE
-
Manufacturer:
Littelfuse Inc
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
7103MDABE Overview
Use the download button to access the 7103MDABE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7103M,
or try a keyword search, such as Toggle Switches
