Description:The 71124 5V CMOS SRAM is organized as 128K x 8. The JEDEC centerpower/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71124 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, copper pours, and other layout considerations to ensure optimal thermal performance.
The 71124S15YGI8 has an internal overcurrent protection (OCP) feature, but it's recommended to add external OCP circuitry to ensure reliable operation. A simple OCP circuit can be implemented using a sense resistor, an op-amp, and a comparator, as described in Renesas' application notes.
The recommended input capacitor value and type depend on the specific application and operating conditions. As a general guideline, a 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) is suitable for most applications. However, it's essential to consult Renesas' application notes and perform simulations to determine the optimal input capacitor value and type for your specific design.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using EMI filters, ferrite beads, and other noise-reducing components in your design. It's also essential to perform EMC testing and simulation to validate your design's compliance with relevant standards.
The 71124S15YGI8 has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (Tj) should not exceed +150°C. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
71124S15YGI8 Overview

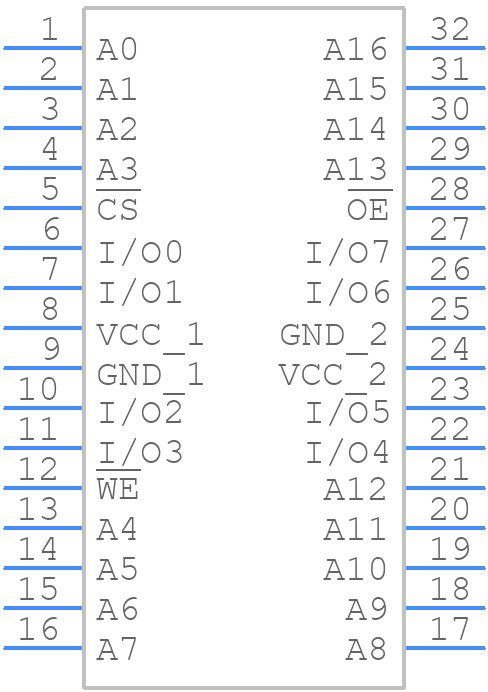

Use the download button to access the 71124S15YGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 71124,
or try a keyword search, such as SRAMs
